XP5322GM - DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet

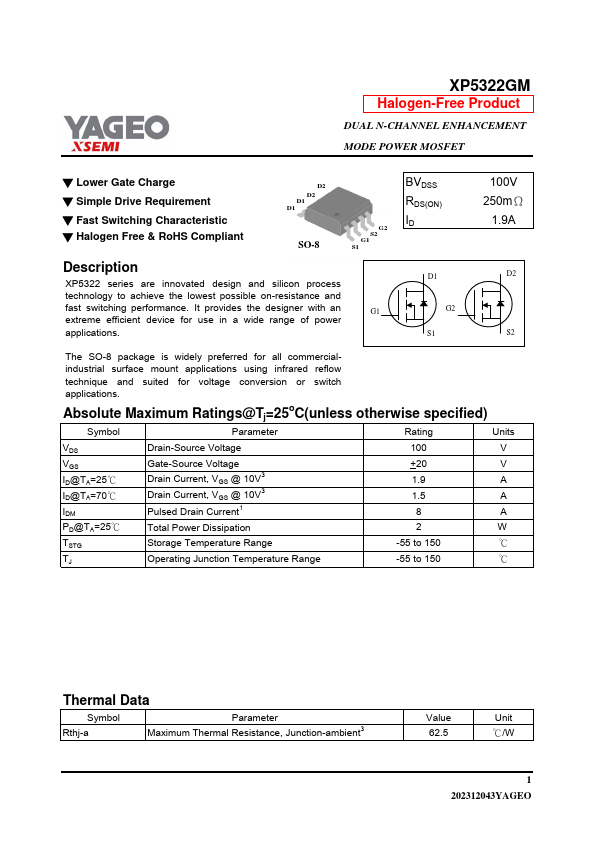

Preview of XP5322GM PDF

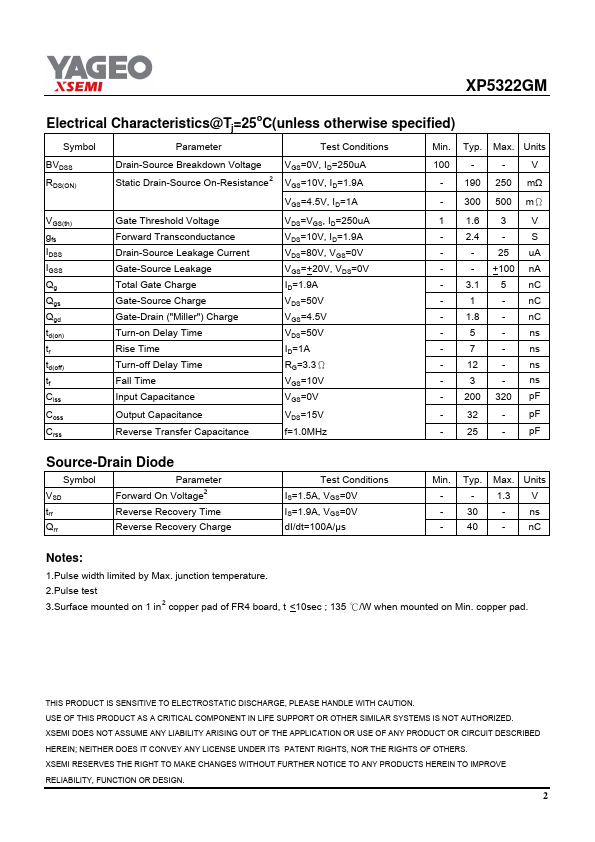

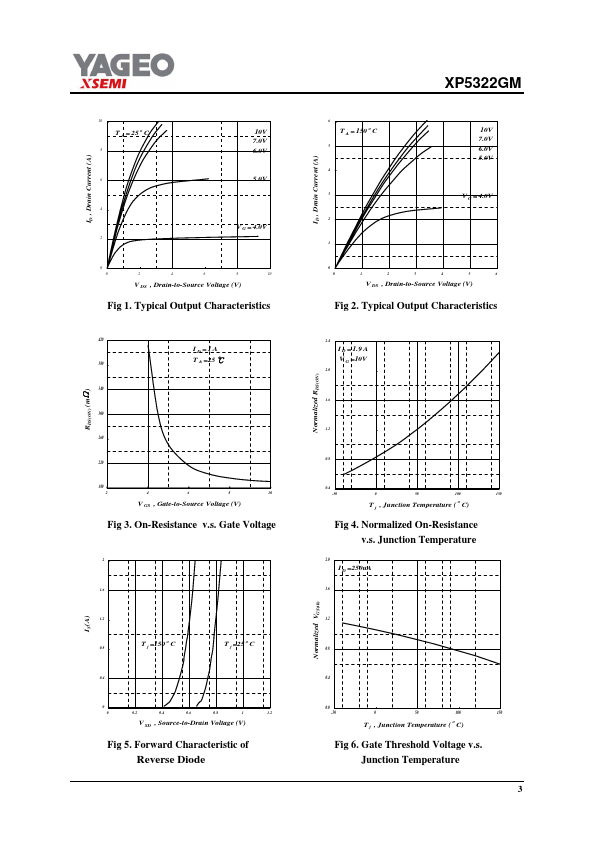

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number XP5322GM
Manufacturer YAGEO
File Size 241.69 KB
Description DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET
Datasheet download datasheet XP5322GM-YAGEO.pdf

XP5322GM Product details

Description

XP5322 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.It provides the designer with an G1 extreme efficient device for use in a wide range of power applications.BVDSS RDS(ON) ID D1 G2 S1 100V 250mΩ 1.9A D2 S2 The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications.Absolute
