XP5521GM N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP5521GM Halogen-Free Product N AND P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching Performance.
XP5521 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

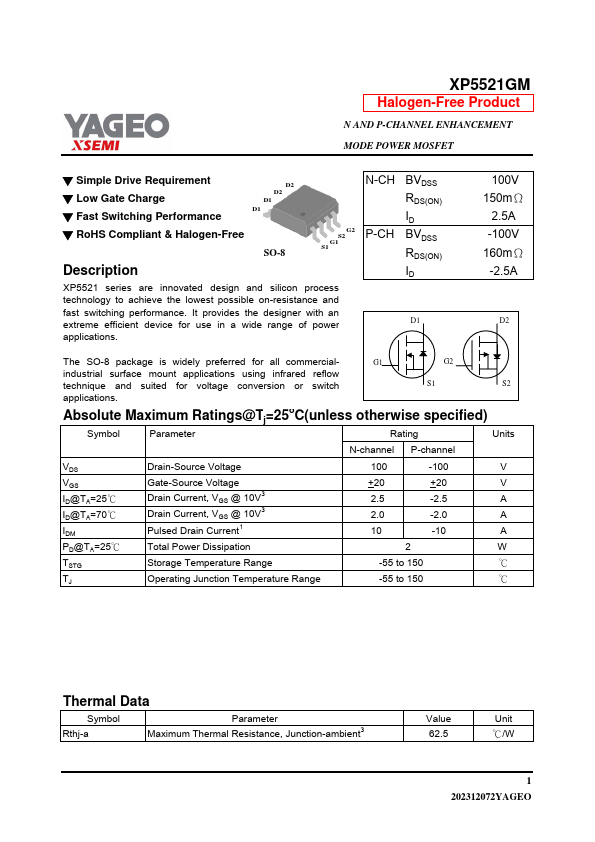

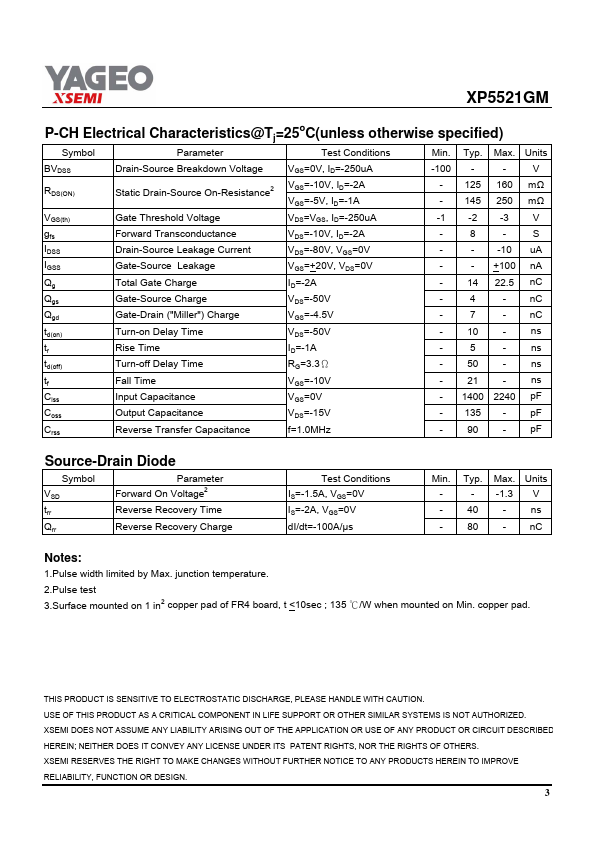

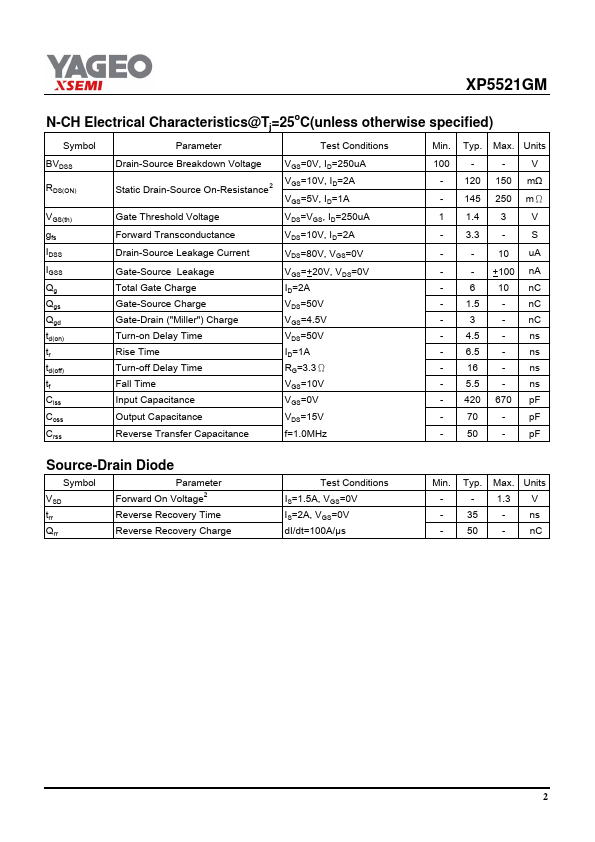

XP5521GM Datasheet Preview — Preview of XP5521GM PDF

Datasheet Specifications

Part number: XP5521GM
Manufacturer: YAGEO
File Size: 264.03 KB
Datasheet: XP5521GM-YAGEO.pdf
Description: N- & P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* N-CH P-CH BVDSS RDS(ON) ID BVDSS RDS(ON) ID D1 100V 150mΩ 2.5A -100V 160mΩ -2.5A D2 The SO-8 package is widely preferred for all commercial- G1 G2 industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch S1 S2 applications. Absolut
