XP60BM095IT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60BM095IT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive Req.
XP60BM095 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

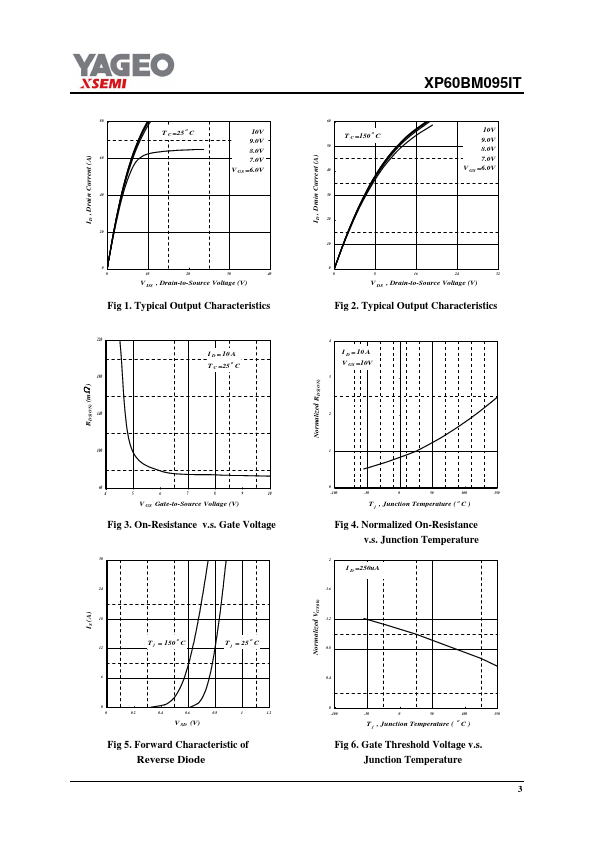

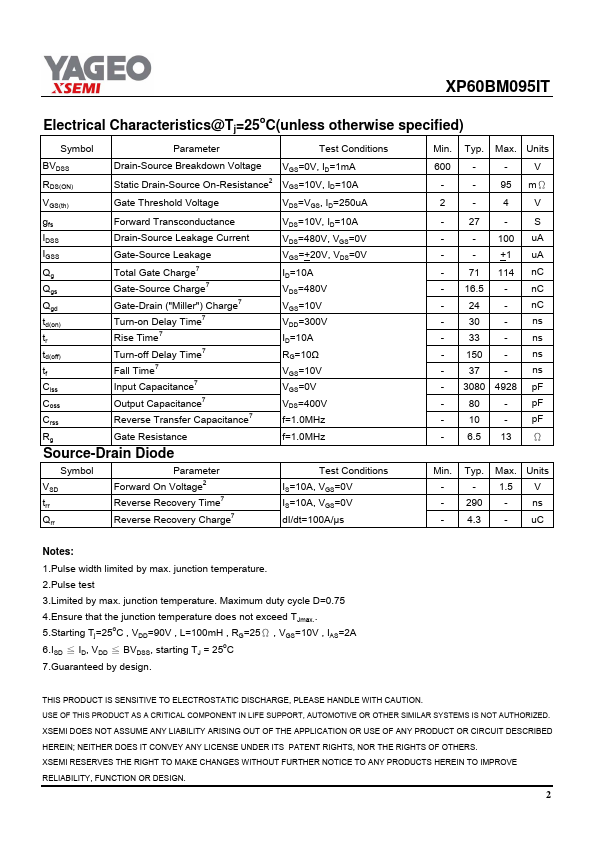

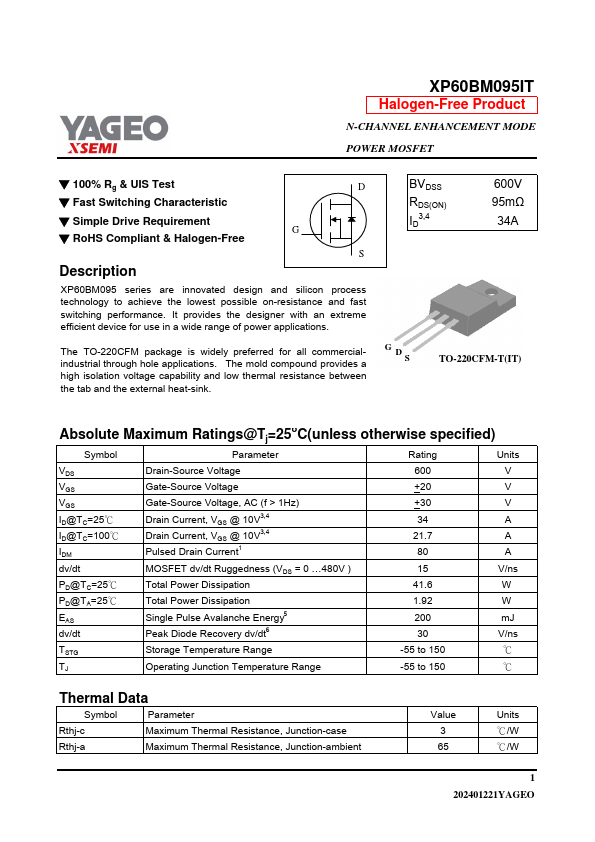

XP60BM095IT Datasheet Preview — Preview of XP60BM095IT PDF

Datasheet Specifications

Part number: XP60BM095IT
Manufacturer: YAGEO
File Size: 311.24 KB
Datasheet: XP60BM095IT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,4 600V 95mΩ 34A G DS TO-220CFM-T(IT) Absolu
