XP60BM115WL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60BM115WL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive Req.
XP60BM115 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

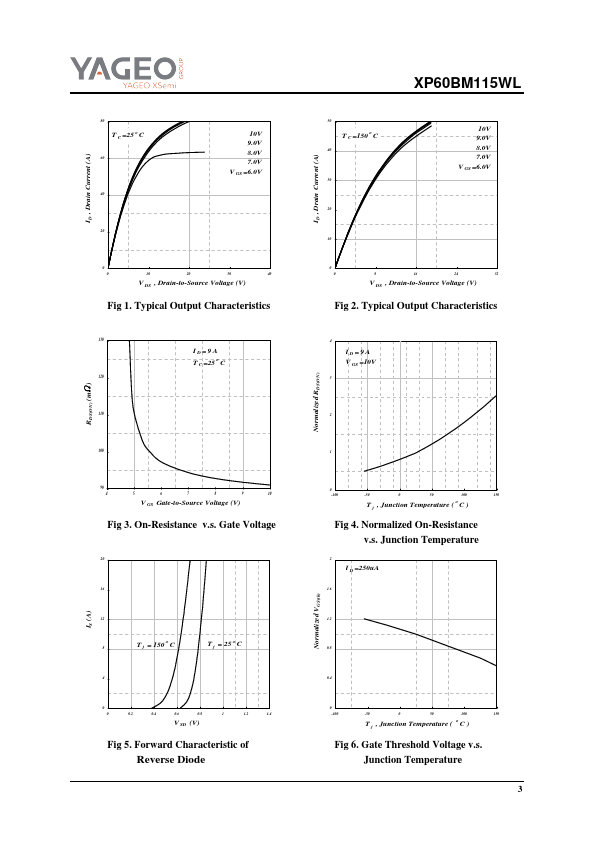

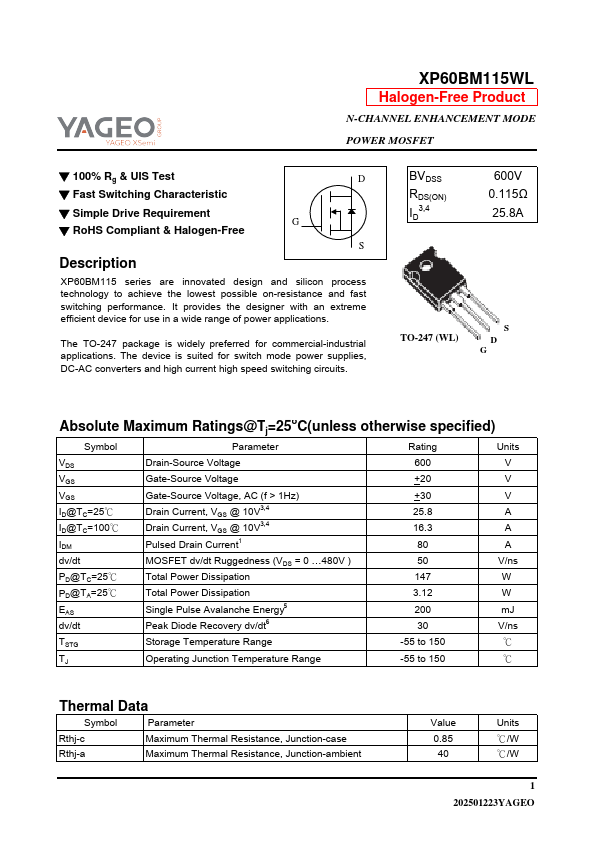

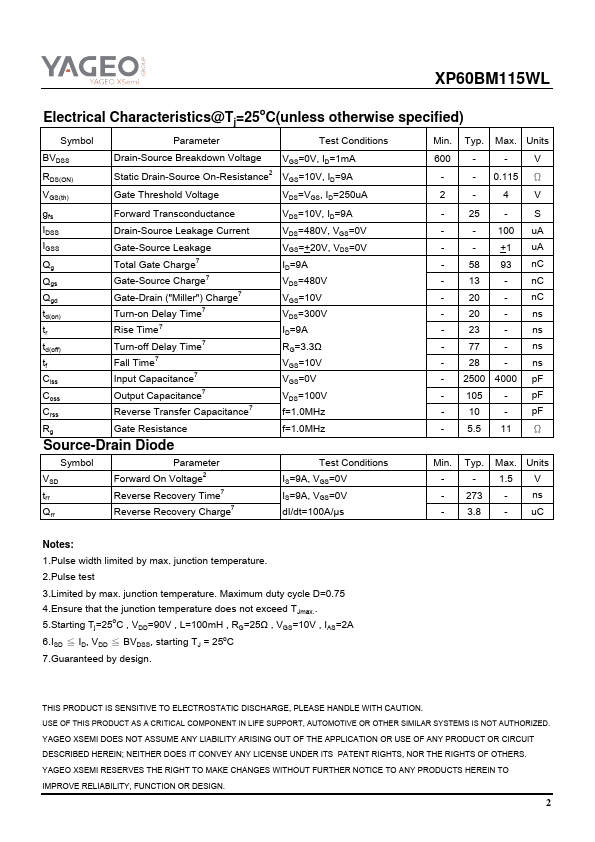

XP60BM115WL Datasheet Preview — Preview of XP60BM115WL PDF

Datasheet Specifications

Part number: XP60BM115WL
Manufacturer: YAGEO
File Size: 735.19 KB
Datasheet: XP60BM115WL-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-247 package is widely preferred for commercial-industrial applications. The device is suited for switch mode power supplies, DC-AC converters and high current high speed switching circuits. BVDSS RDS(ON) ID3,4 600V 0.115Ω 25.8A TO-247 (WL) S D G Absolute Maximum Ratings@Tj=25o. C(unless
