XP60BM160R N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60BM160R Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive Requ.
XP60BM160 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

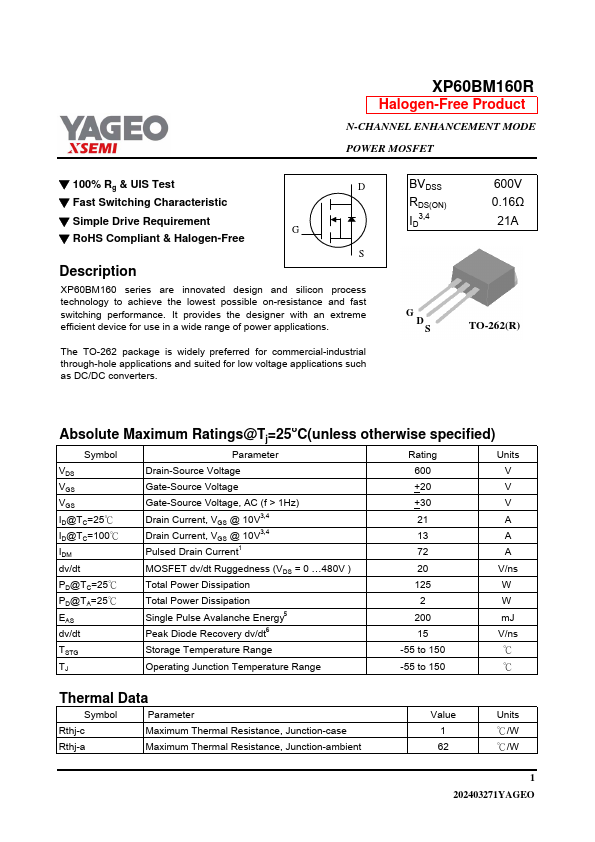

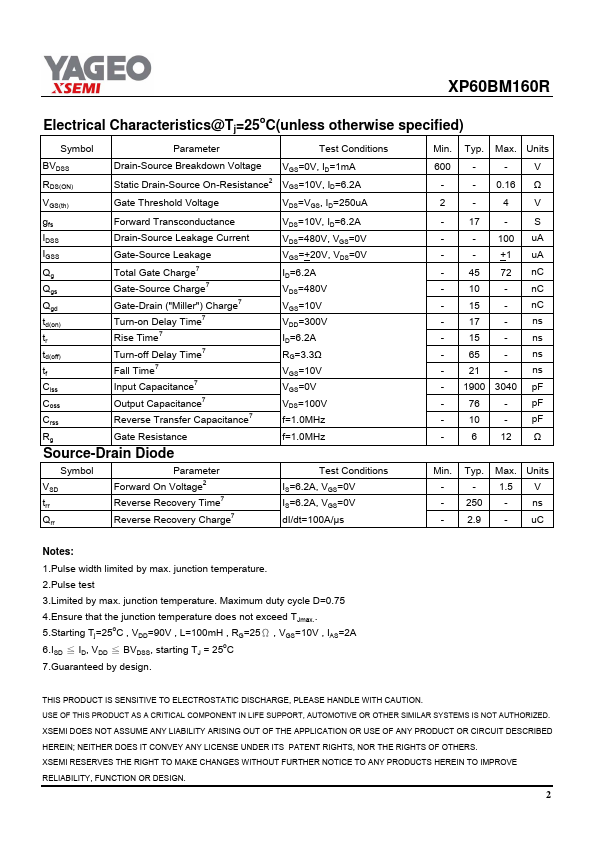

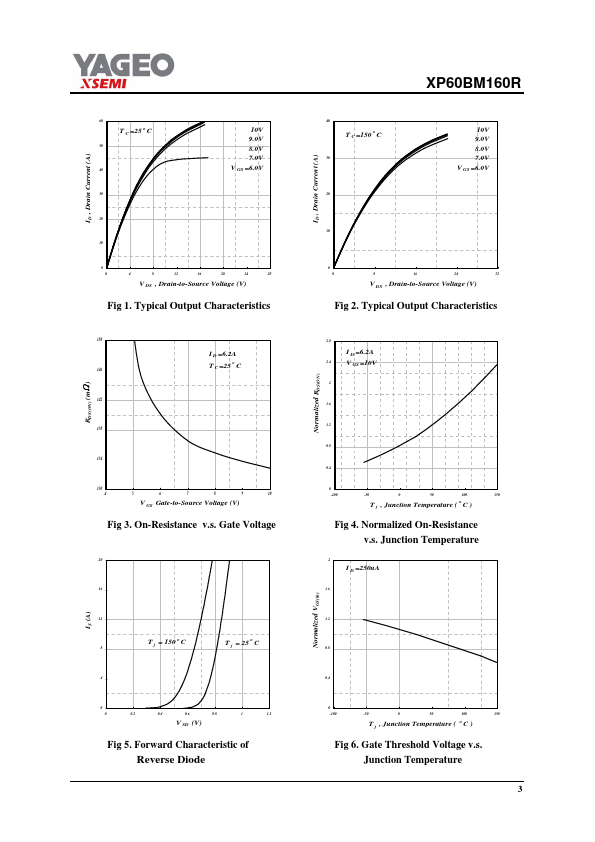

XP60BM160R Datasheet Preview — Preview of XP60BM160R PDF

Datasheet Specifications

Part number: XP60BM160R
Manufacturer: YAGEO
File Size: 192.35 KB
Datasheet: XP60BM160R-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-262 package is widely preferred for commercial-industrial through-hole applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3,4 600V 0.16Ω 21A G D S TO-262(R) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rati
