XP60BM125DT8 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60BM125DT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Fast Switching Characteristic Pin 5 Drain ▼ Simple.
Pin 1 Gate Pin 2 Driver Source Pin 3,4 Power Source XP60BM125 series are innovated design and silicon process technology to achieve the lowest pos.

📥 Download Datasheet

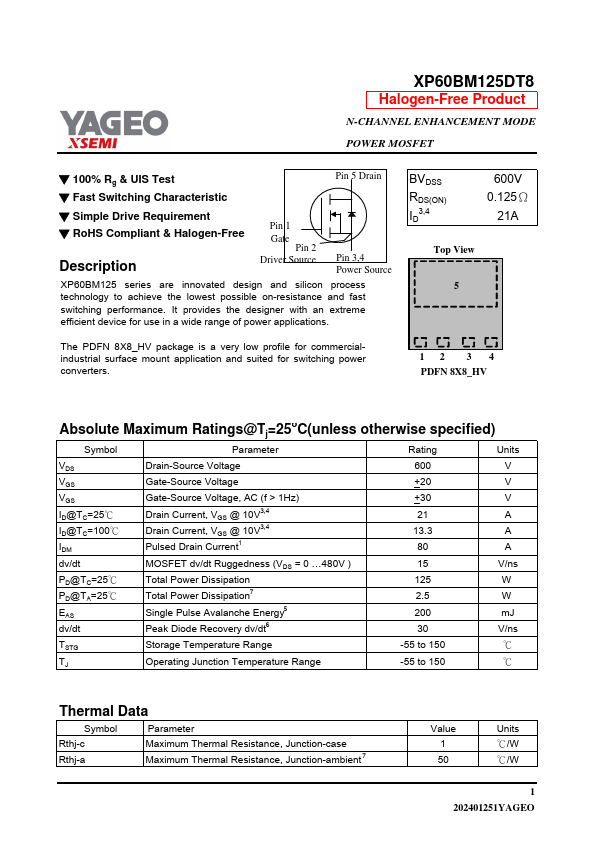

XP60BM125DT8 Datasheet Preview — Preview of XP60BM125DT8 PDF

Datasheet Specifications

Part number: XP60BM125DT8
Manufacturer: YAGEO
File Size: 206.50 KB
Datasheet: XP60BM125DT8-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID3,4 600V 0.125Ω 21A Top View 5 The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. 12 3 4 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
