XP60SA290ADIT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SA290ADIT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ R.
XP60SA290AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

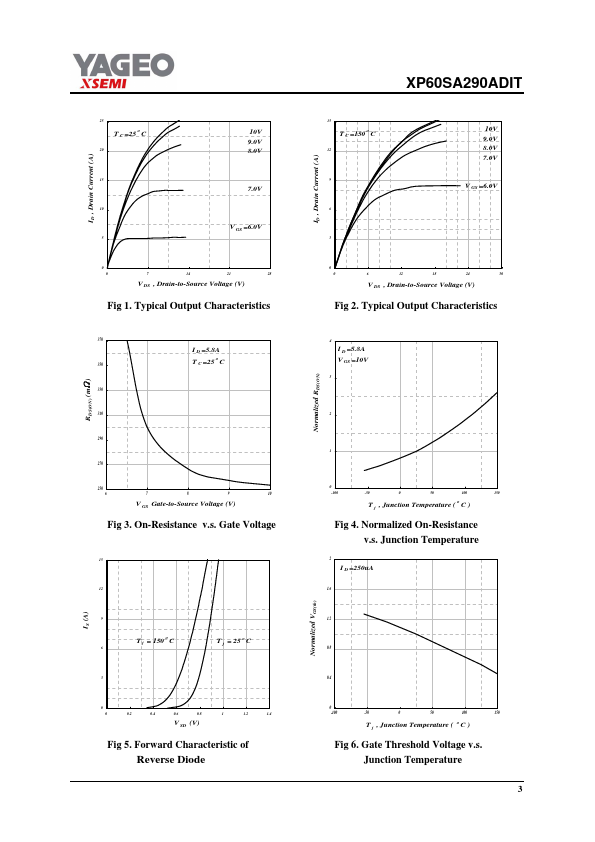

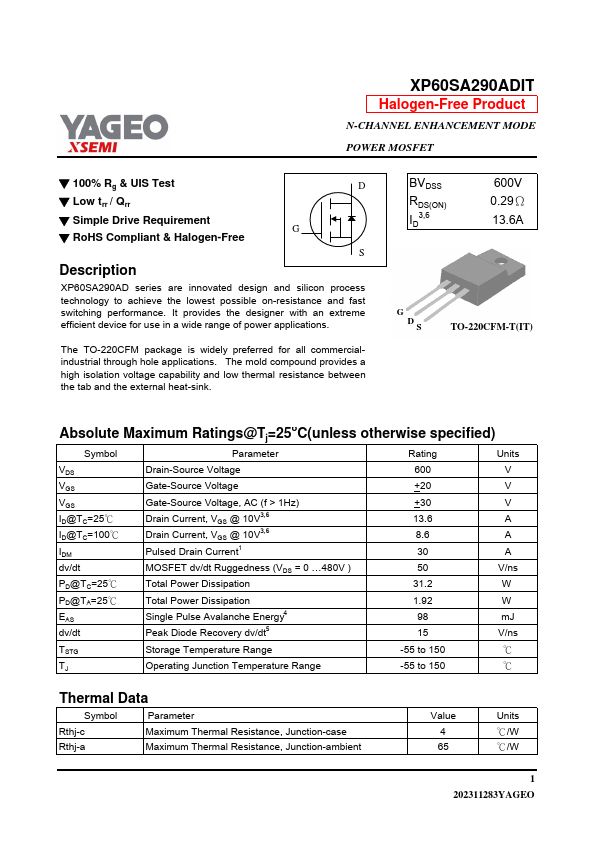

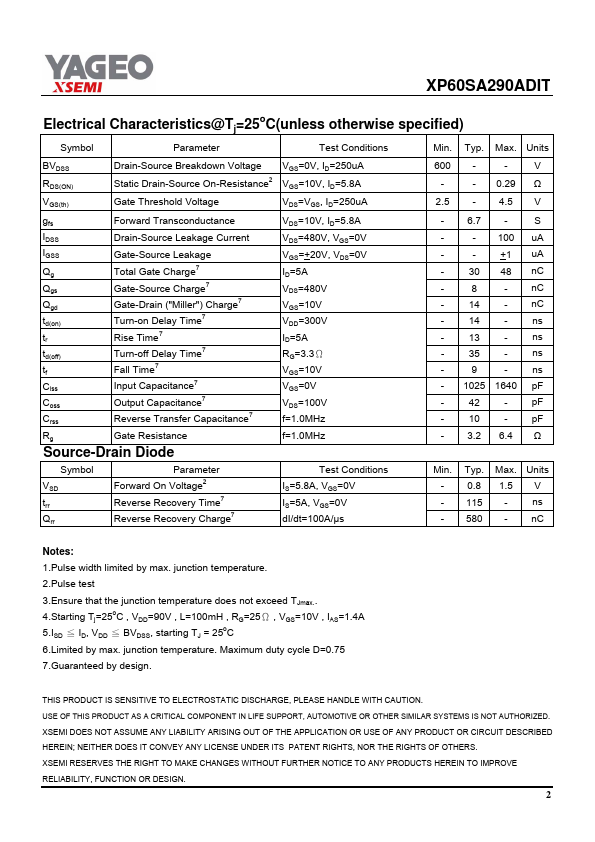

XP60SA290ADIT Datasheet Preview — Preview of XP60SA290ADIT PDF

Datasheet Specifications

Part number: XP60SA290ADIT
Manufacturer: YAGEO
File Size: 310.17 KB
Datasheet: XP60SA290ADIT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,6 600V 0.29Ω 13.6A G DS TO-220CFM-T(IT) Abs
