XP60SC095DWL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC095DWL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ Ro.
XP60SC095D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

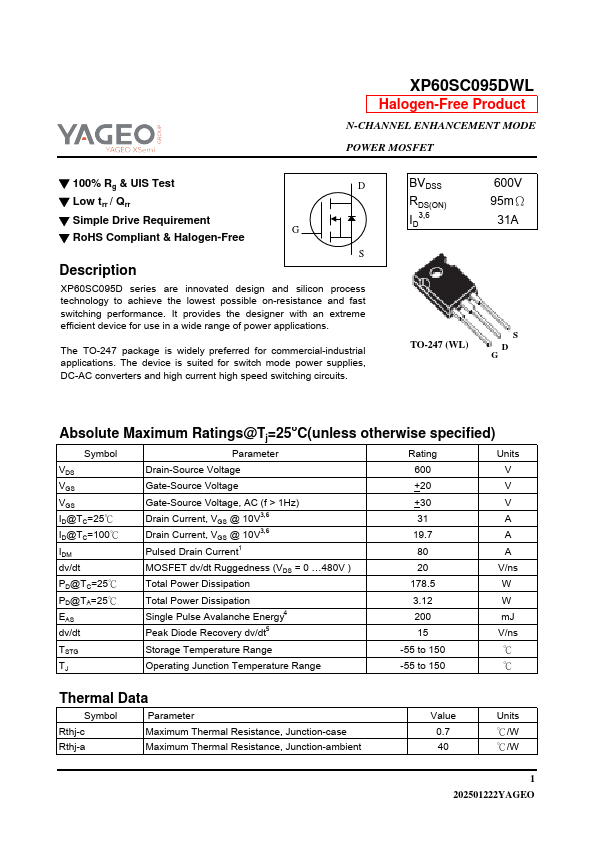

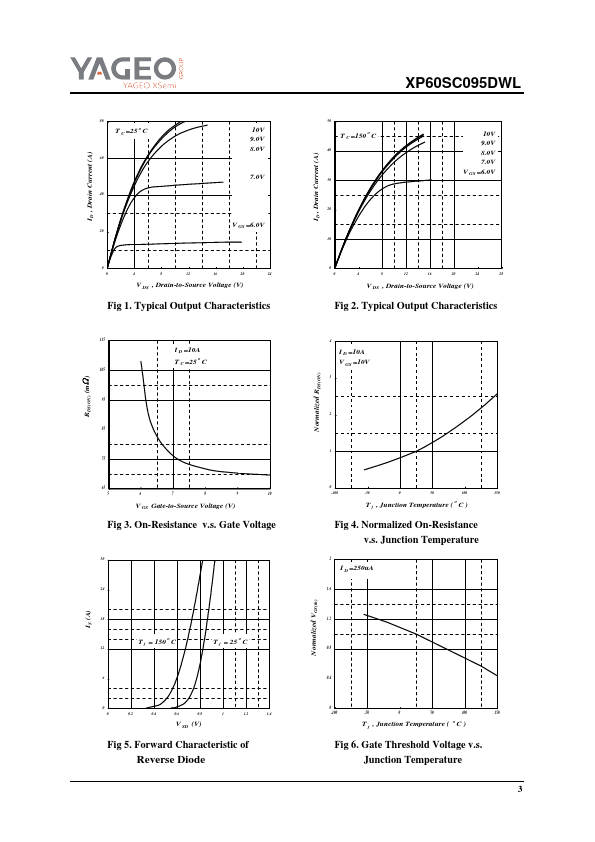

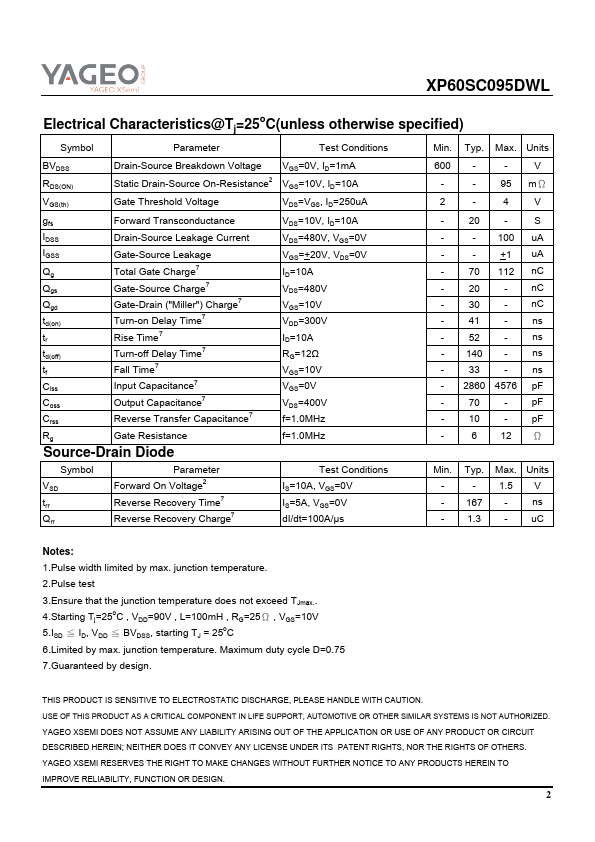

XP60SC095DWL Datasheet Preview — Preview of XP60SC095DWL PDF

Datasheet Specifications

Part number: XP60SC095DWL
Manufacturer: YAGEO
File Size: 735.58 KB
Datasheet: XP60SC095DWL-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-247 package is widely preferred for commercial-industrial applications. The device is suited for switch mode power supplies, DC-AC converters and high current high speed switching circuits. BVDSS RDS(ON) ID3,6 600V 95mΩ 31A TO-247 (WL) S D G . Absolute Maximum Ratings@Tj=25oC(unless ot
