XP60SC099DDT8 N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC099DDT8 Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test Pin 5 Drain ▼ Low trr / Qrr ▼ Simple Drive Require.
Pin 1 Gate Pin 2 Driver Source Pin 3,4 Power Source XP60SC099D series are innovated design and silicon process technology to achieve the lowest pos.

📥 Download Datasheet

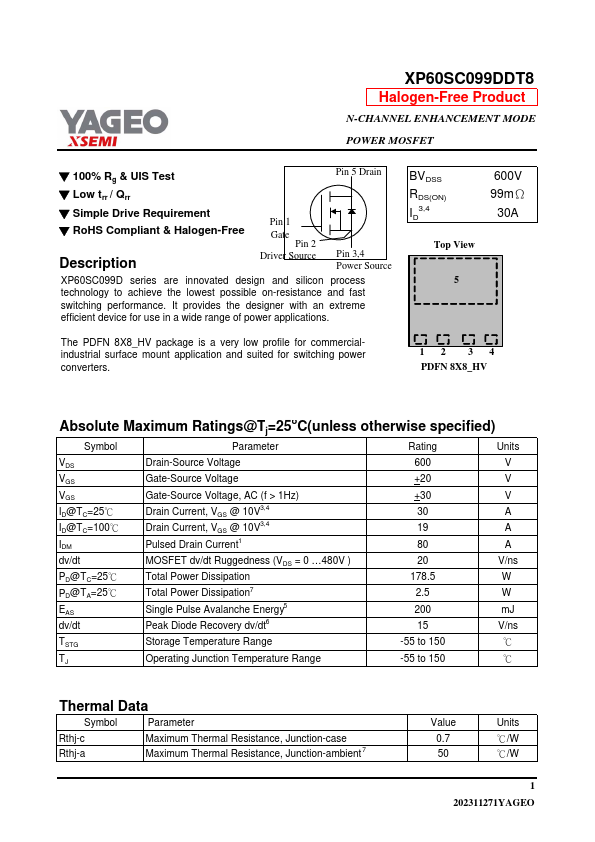

XP60SC099DDT8 Datasheet Preview — Preview of XP60SC099DDT8 PDF

Datasheet Specifications

Part number: XP60SC099DDT8
Manufacturer: YAGEO
File Size: 167.05 KB
Datasheet: XP60SC099DDT8-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* BVDSS RDS(ON) ID3,4 Top View 5 600V 99mΩ 30A The PDFN 8X8_HV package is a very low profile for commercialindustrial surface mount application and suited for switching power converters. 12 34 PDFN 8X8_HV Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Un
