XP65AN750I N-CHANNEL ENHANCEMENT MODE POWER MOSFET

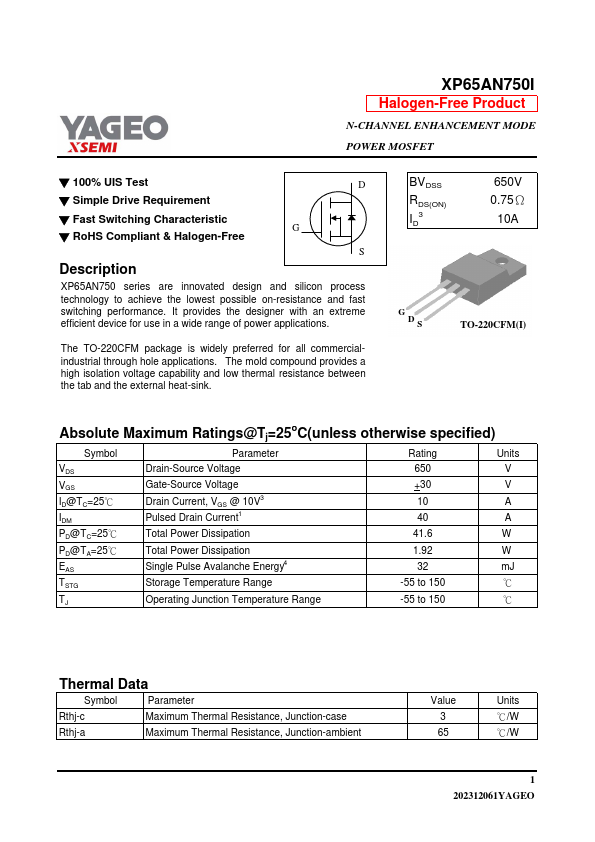

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP65AN750I Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP65AN750 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP65AN750I PDF

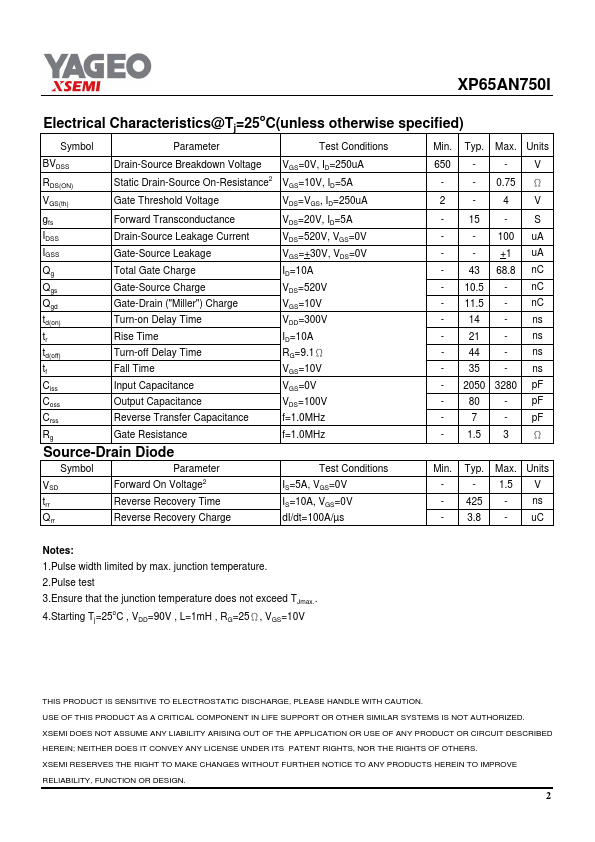

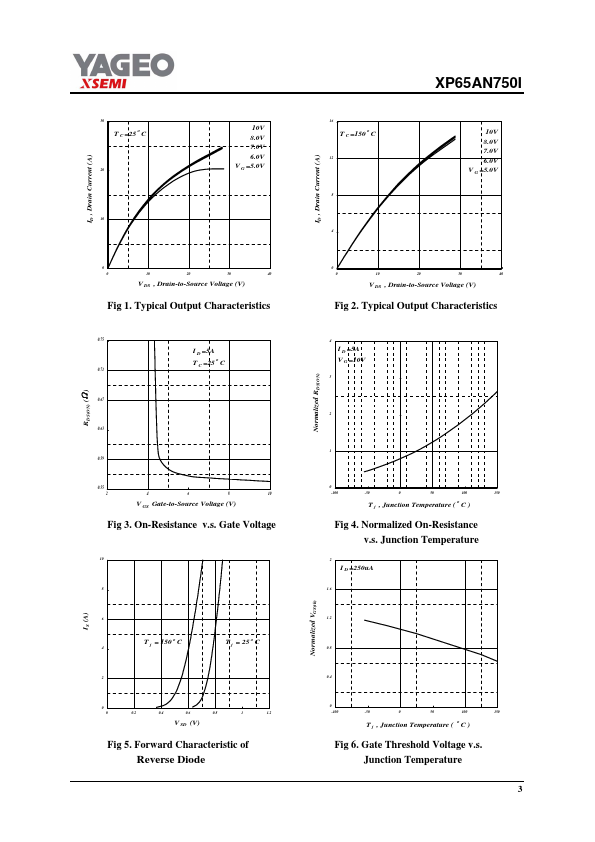

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP65AN750I
Manufacturer
YAGEO
File Size
212.70 KB
Datasheet
XP65AN750I-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 650V 0.75Ω 10A G DS TO-220CFM(I) Absolute M
