XP65CM200EIT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65CM200EIT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test ▼ Fast Switching Characteristic ▼ Simple Drive Require.
XP65CM200E series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

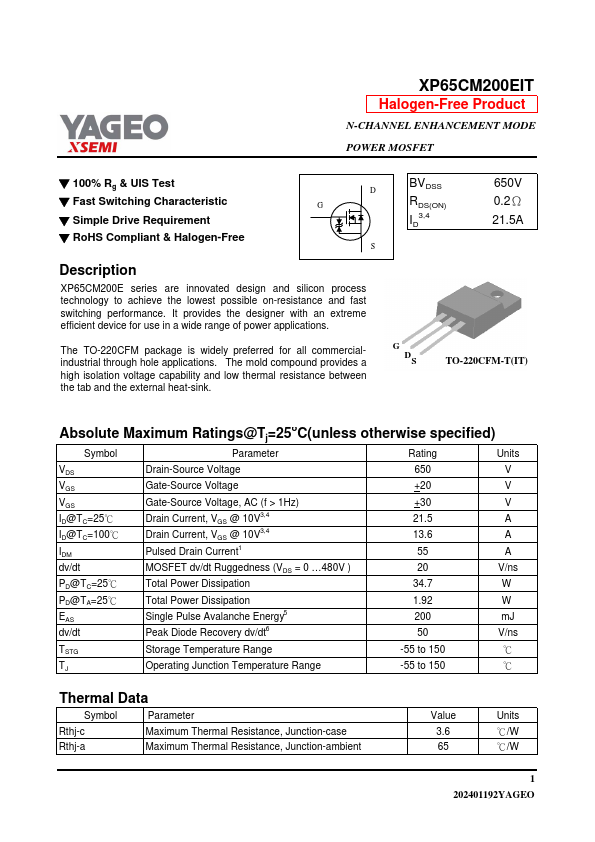

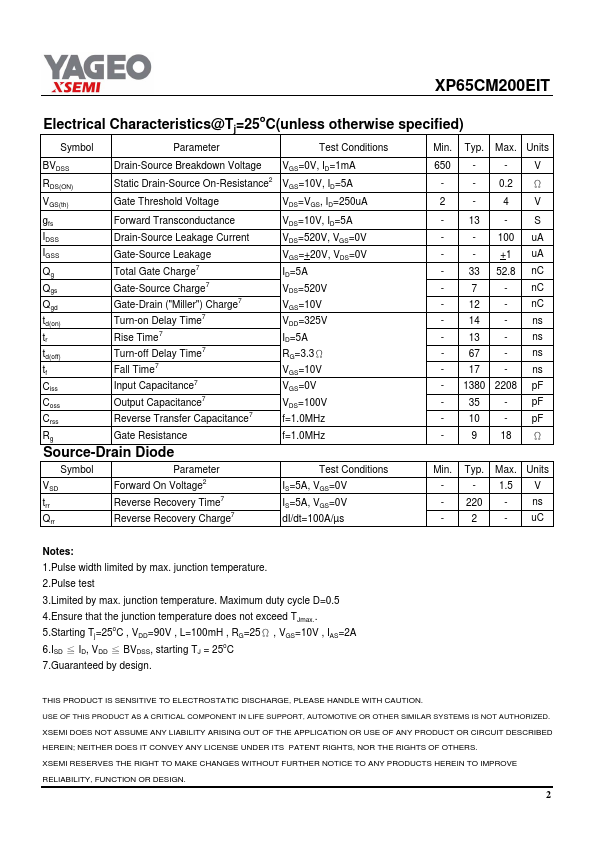

XP65CM200EIT Datasheet Preview — Preview of XP65CM200EIT PDF

Datasheet Specifications

Part number: XP65CM200EIT
Manufacturer: YAGEO
File Size: 272.79 KB
Datasheet: XP65CM200EIT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. G DS TO-220CFM-T(IT) Absolute Maximum Ratings@Tj=25oC(unless oth
