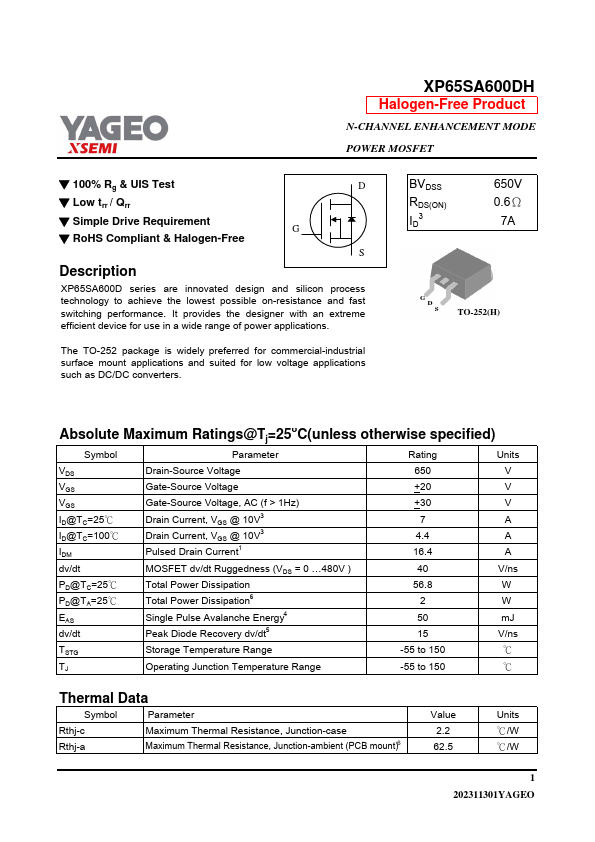

XP65SA600DH Datasheet - YAGEO

XP65SA600DH, N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP65SA600DH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SA600D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

datasheet Preview Page 1 from Datasheet4u.com

XP65SA600DH-YAGEO.pdf

XP65SA600DH Datasheet Preview — Preview of XP65SA600DH PDF

Datasheet Details

Part number:

XP65SA600DH

Manufacturer:

YAGEO

File Size:

215.31 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 650V 0.6Ω 7A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
