XP65SA600DIN N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SA600DIN Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ Ro.
XP65SA600D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

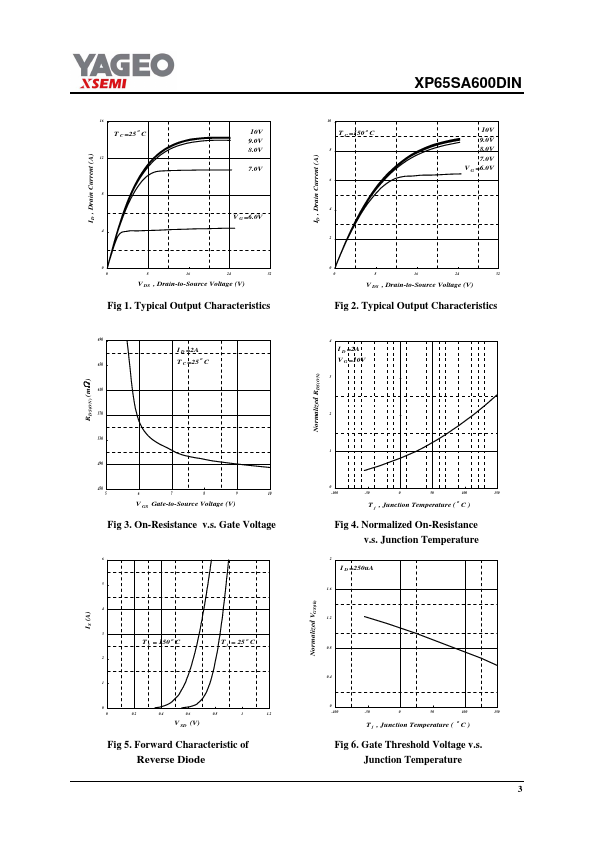

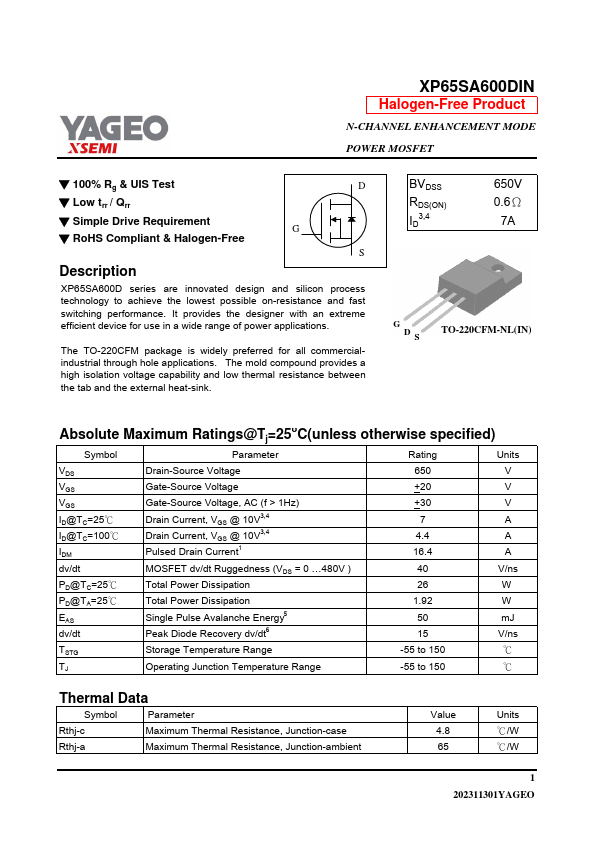

XP65SA600DIN Datasheet Preview — Preview of XP65SA600DIN PDF

Datasheet Specifications

Part number: XP65SA600DIN
Manufacturer: YAGEO
File Size: 239.81 KB
Datasheet: XP65SA600DIN-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,4 650V 0.6Ω 7A G DS TO-220CFM-NL(IN) Absolu
