XP65SC220DH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SC220DH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ RoH.
XP65SC220D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

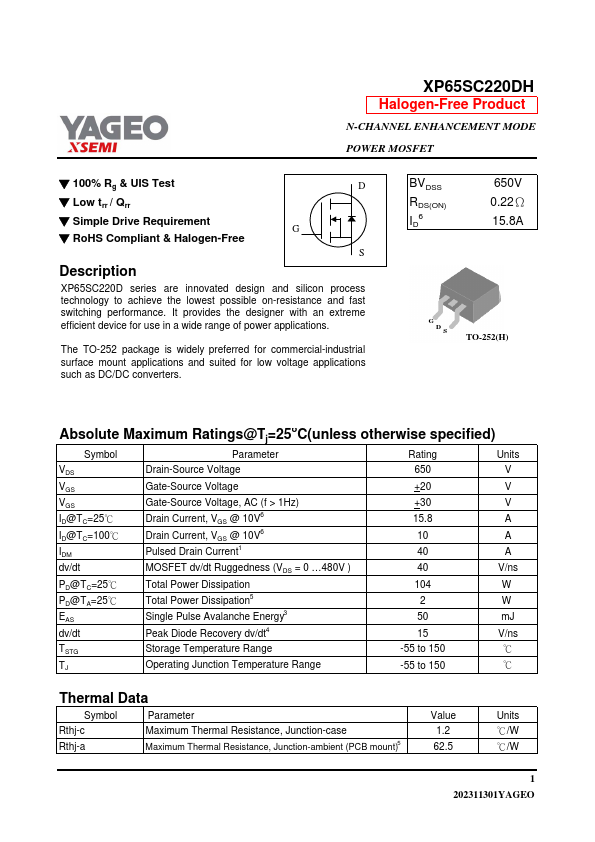

XP65SC220DH Datasheet Preview — Preview of XP65SC220DH PDF

Datasheet Specifications

Part number: XP65SC220DH
Manufacturer: YAGEO
File Size: 175.74 KB
Datasheet: XP65SC220DH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID6 650V 0.22Ω 15.8A G DS TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rati
