XP65SC420DH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SC420DH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement ▼ RoHS.
XP65SC420D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

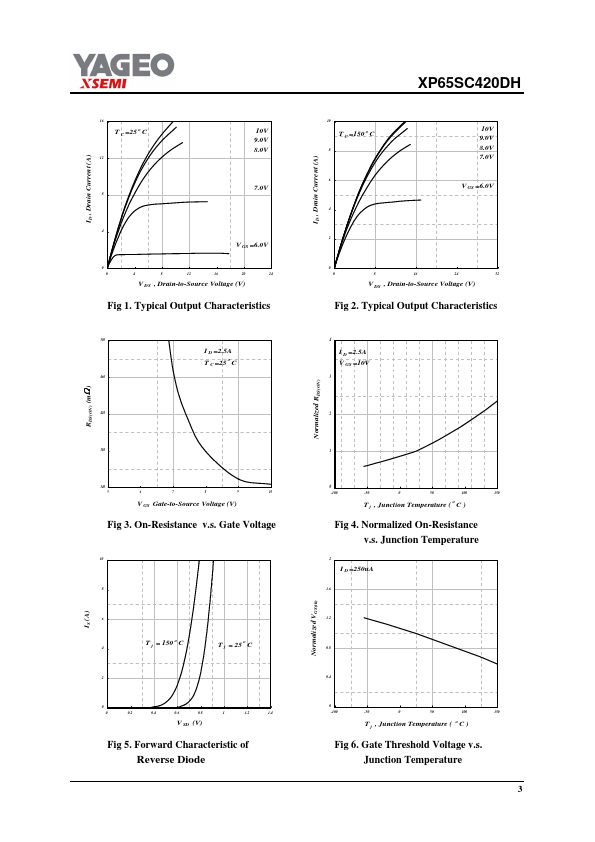

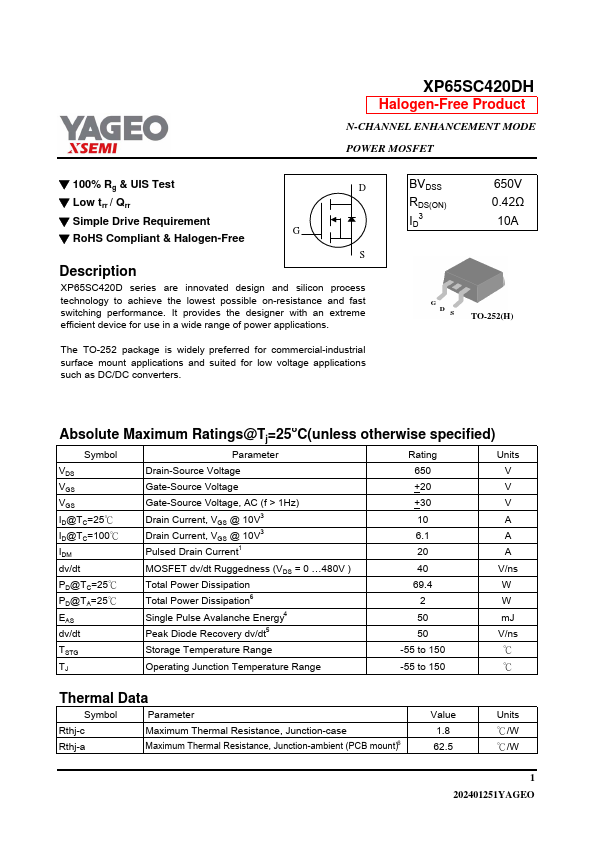

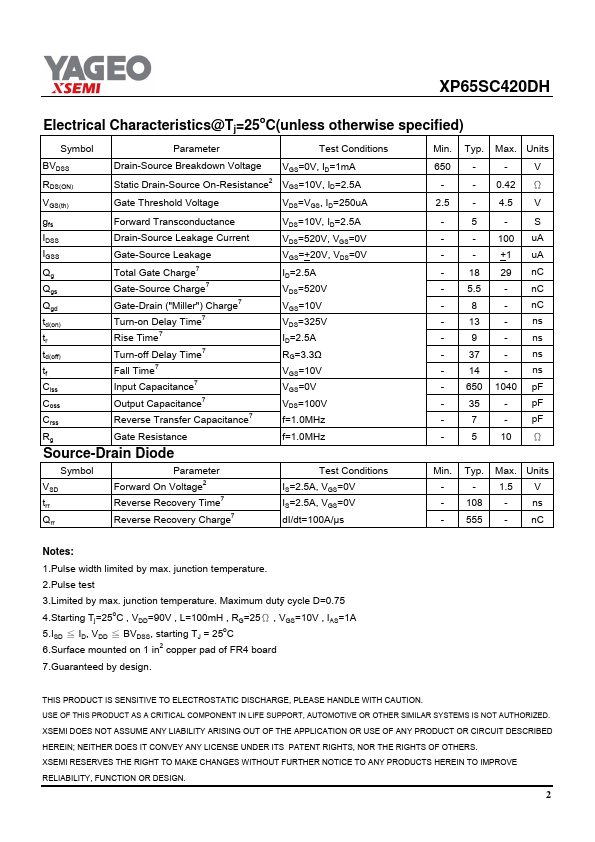

XP65SC420DH Datasheet Preview — Preview of XP65SC420DH PDF

Datasheet Specifications

Part number: XP65SC420DH
Manufacturer: YAGEO
File Size: 216.38 KB
Datasheet: XP65SC420DH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 650V 0.42Ω 10A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Ratin
