XP65SL099DWL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SL099DWL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive Re.
XP65SL099D series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

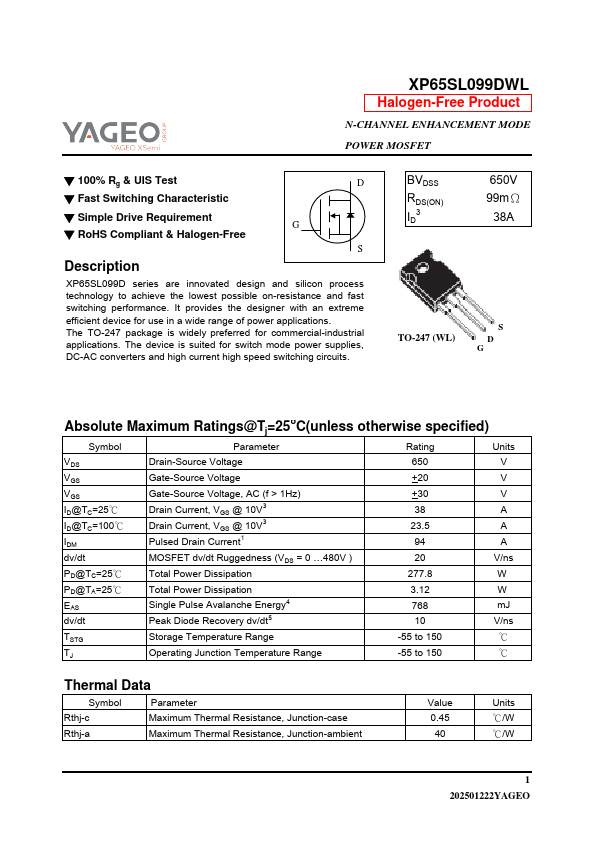

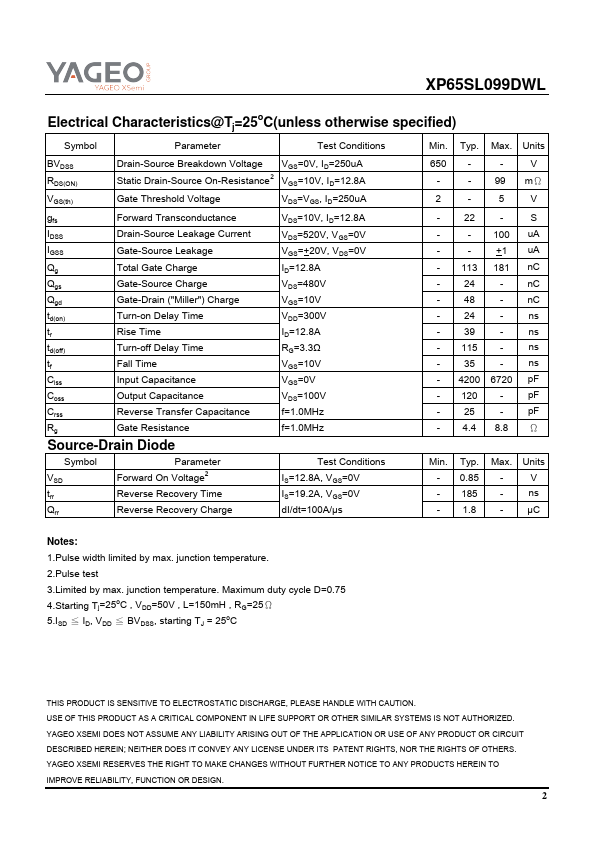

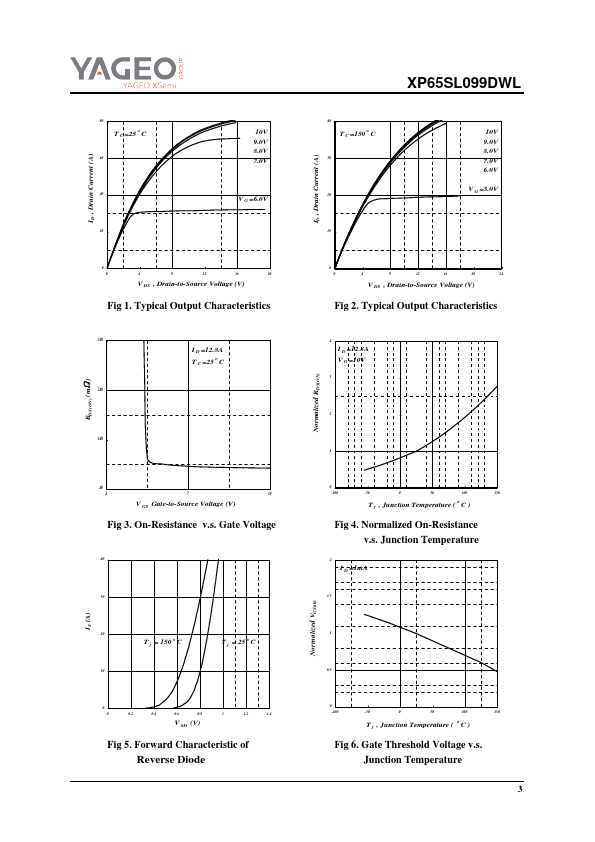

XP65SL099DWL Datasheet Preview — Preview of XP65SL099DWL PDF

Datasheet Specifications

Part number: XP65SL099DWL
Manufacturer: YAGEO
File Size: 737.11 KB
Datasheet: XP65SL099DWL-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-247 package is widely preferred for commercial-industrial applications. The device is suited for switch mode power supplies, DC-AC converters and high current high speed switching circuits. BVDSS RDS(ON) ID3 650V 99mΩ 38A TO-247 (WL) S D G Absolute Maximum Ratings@Tj=25o. C(unless otherw

XP65SL099DWL Distributors

📁 Related Datasheet

XP6501 XP6534 XP6111 XP6112 XP6113 XP6114

📌 All Tags

XP65SL099DWL N-CHANNEL ENHANCEMENT MODE POWER MOSFET YAGEO

YAGEO XP65SL099DWL-like datasheet
