XP65SL105AFWL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SL105AFWL Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive R.
XP65SL105AF series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

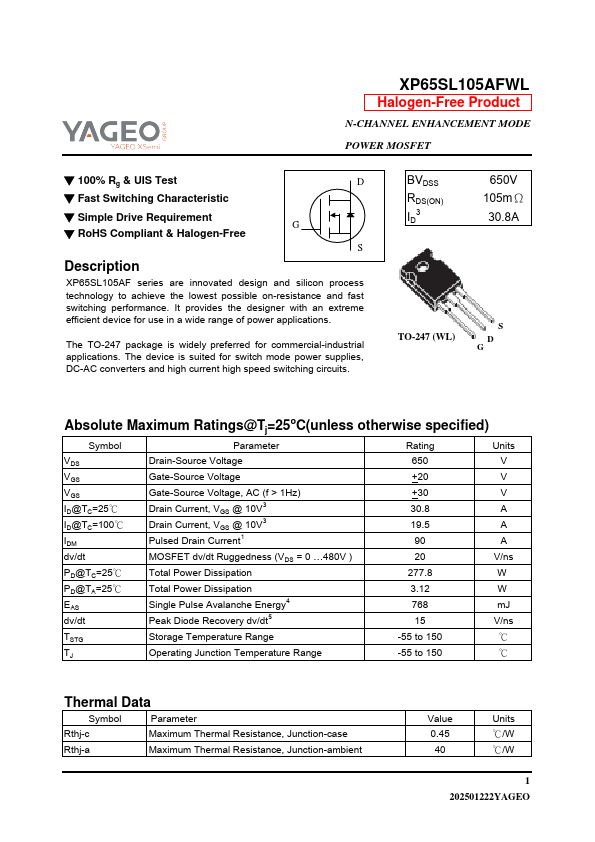

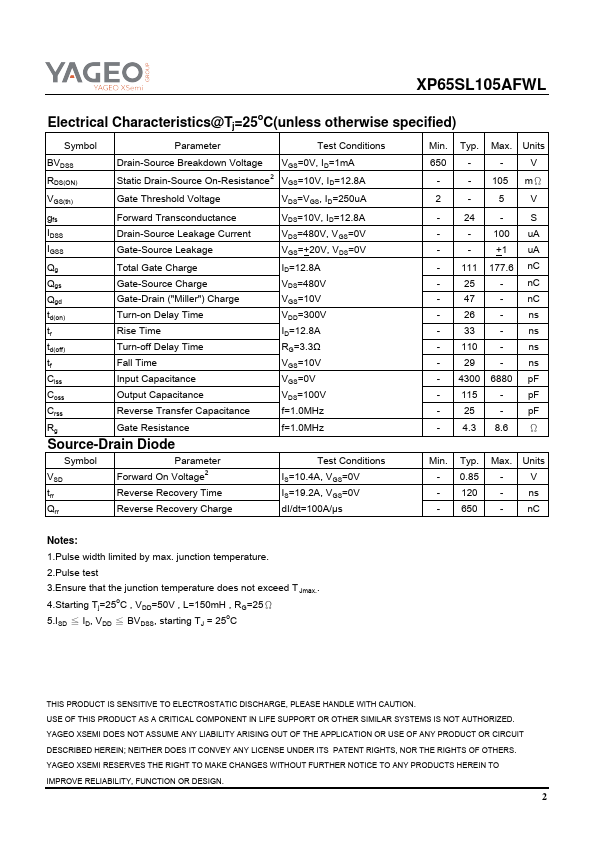

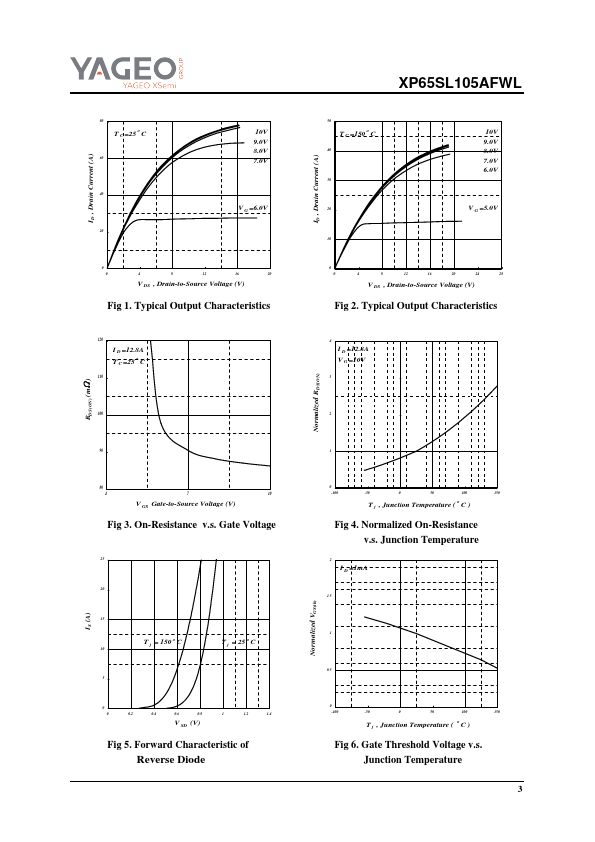

XP65SL105AFWL Datasheet Preview — Preview of XP65SL105AFWL PDF

Datasheet Specifications

Part number: XP65SL105AFWL
Manufacturer: YAGEO
File Size: 736.63 KB
Datasheet: XP65SL105AFWL-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-247 package is widely preferred for commercial-industrial applications. The device is suited for switch mode power supplies, DC-AC converters and high current high speed switching circuits. BVDSS RDS(ON) ID3 650V 105mΩ 30.8A TO-247 (WL) S D G Absolute Maximum Ratings@Tj=25o. C(unless ot
