XP65SL105AFS N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP65SL105AFS Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive Re.
XP65SL105AF series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

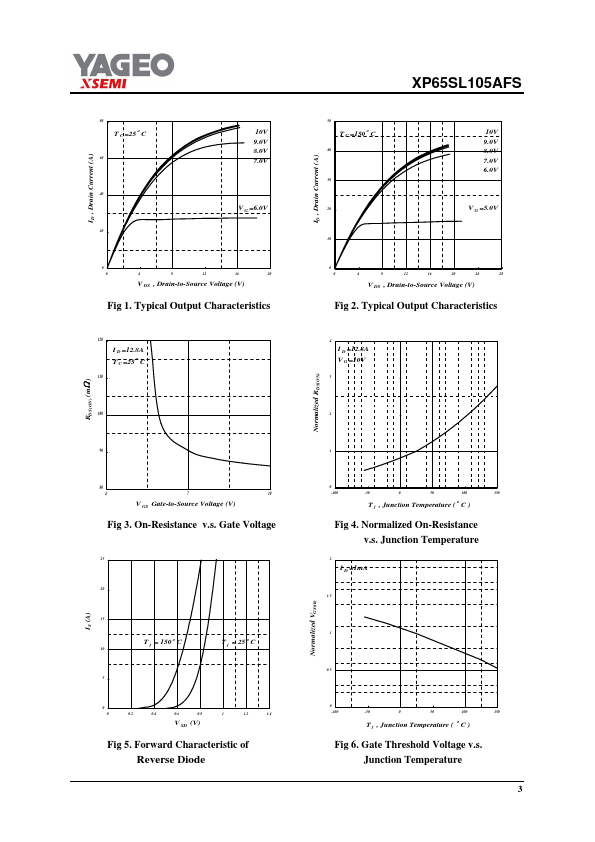

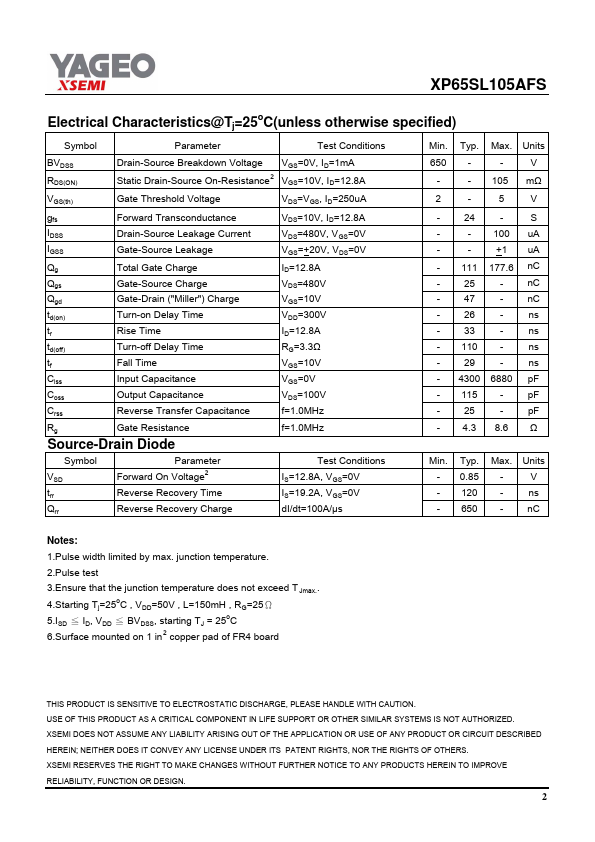

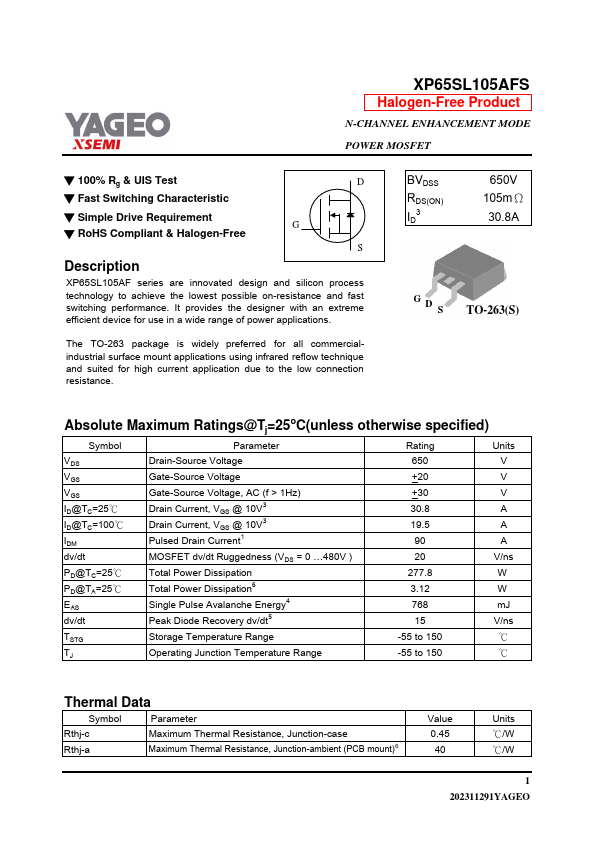

XP65SL105AFS Datasheet Preview — Preview of XP65SL105AFS PDF

Datasheet Specifications

Part number: XP65SL105AFS
Manufacturer: YAGEO
File Size: 298.10 KB
Datasheet: XP65SL105AFS-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-263 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID3 650V 105mΩ 30.8A GD S TO-263(S) Absolute Maximum Ratings@Tj=25oC(unles
