XP6932MT DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6932MT Halogen-Free Product ASYMMETRIC DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D1 CH-1 BVDSS 30V ▼ Easy for DC/.
XP6932 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

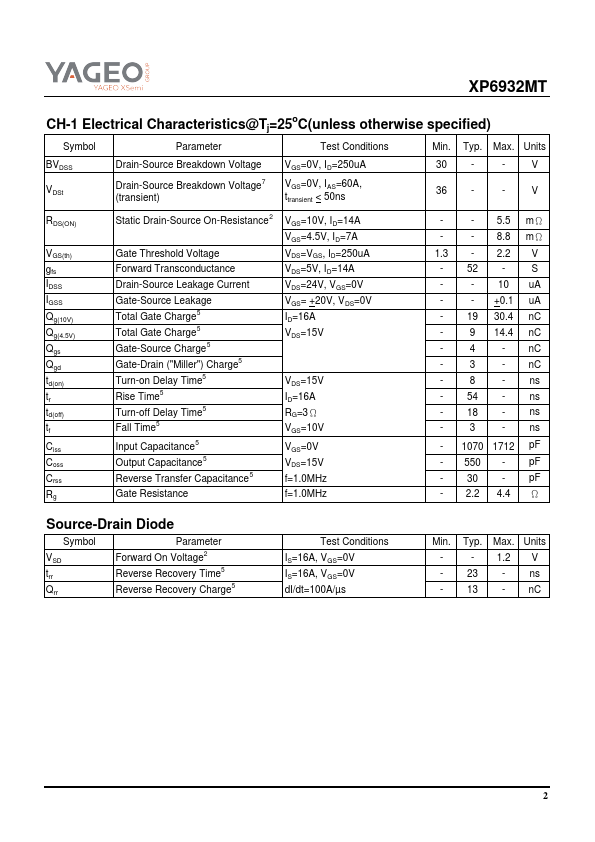

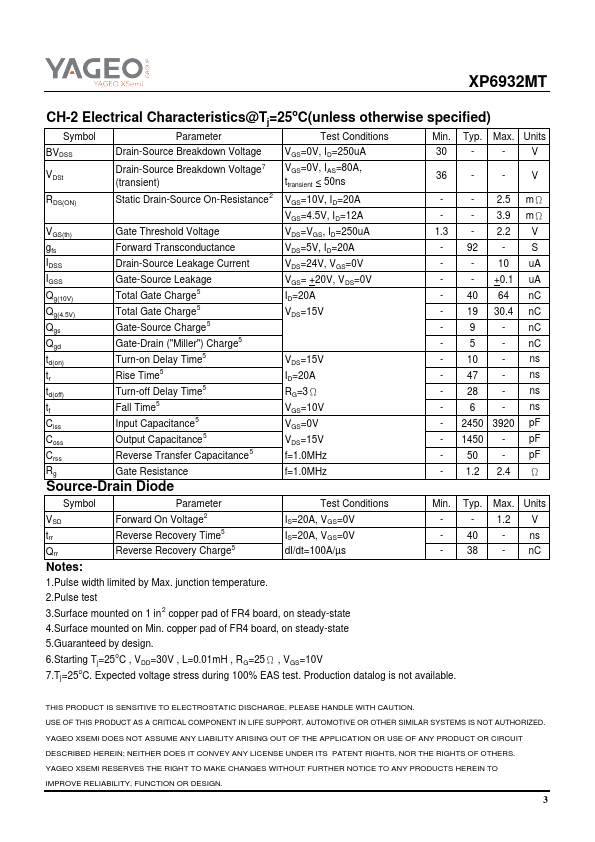

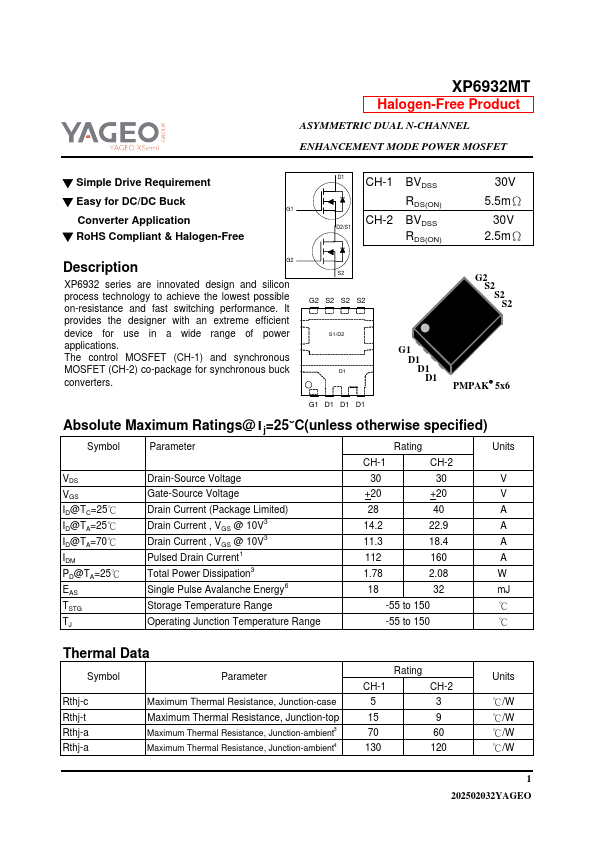

XP6932MT Datasheet Preview — Preview of XP6932MT PDF

Datasheet Specifications

Part number: XP6932MT
Manufacturer: YAGEO
File Size: 778.46 KB
Datasheet: XP6932MT-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The control MOSFET (CH-1) and synchronous MOSFET (CH-2) co-package for synchronous buck converters. S2 G2 S2 S2 S2 S1/D2 D1 G2 S2 S2 S2 G1 D1 D1 D1 PMPAK® 5x6 G1 D1 D1 D1 Absolute Maximum Ratings@Tj=25oC. (unless otherwise specified) Symbol Parameter Rating Units CH-1 CH-2 VDS Drain-So
