XP70AN3K3H N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP70AN3K3H Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP70AN3K3 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

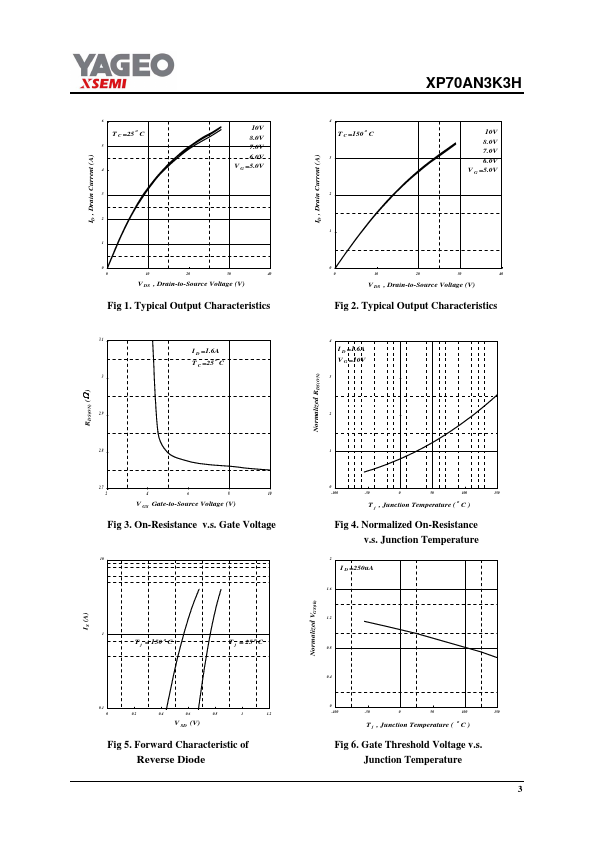

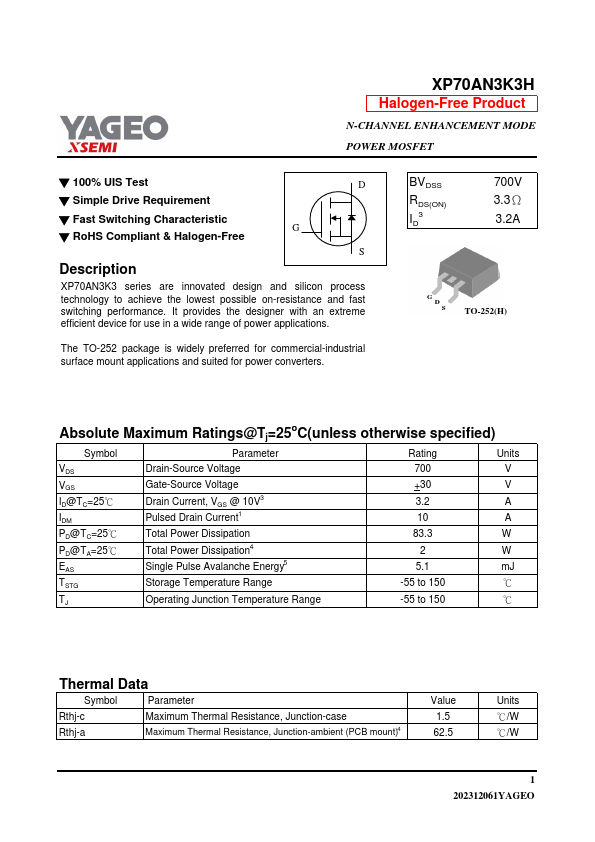

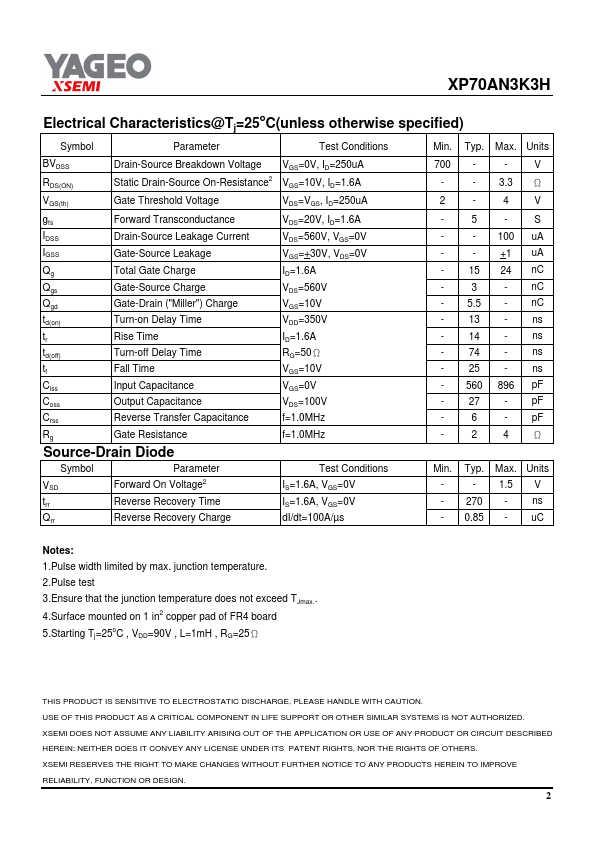

XP70AN3K3H Datasheet Preview — Preview of XP70AN3K3H PDF

Datasheet Specifications

Part number: XP70AN3K3H
Manufacturer: YAGEO
File Size: 172.67 KB
Datasheet: XP70AN3K3H-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for power converters. BVDSS RDS(ON) ID3 700V 3.3Ω 3.2A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units VDS Drain-Source Volta
