XP70T03GJ N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP70T03GJ Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Low Gate Charge ▼ Fast Switching ▼ RoHS Compliant.
XP70T03 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

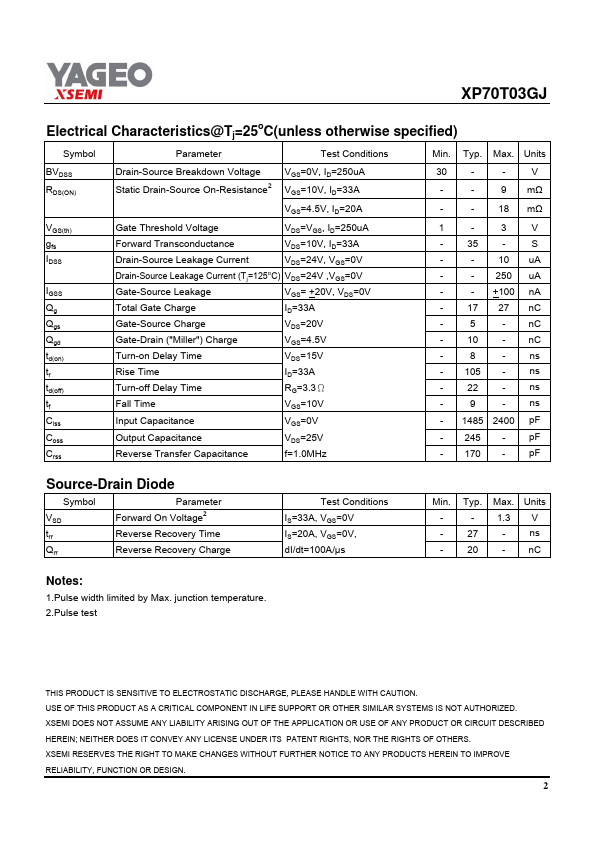

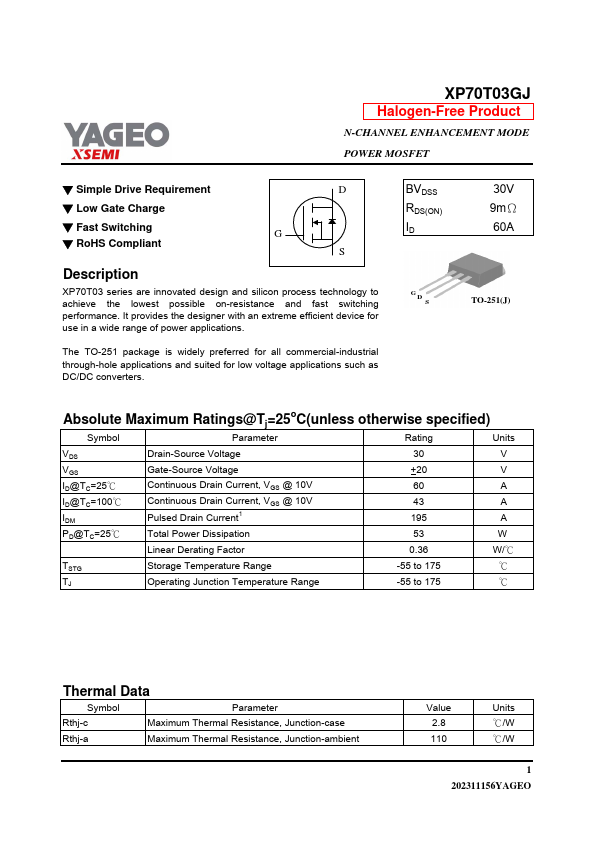

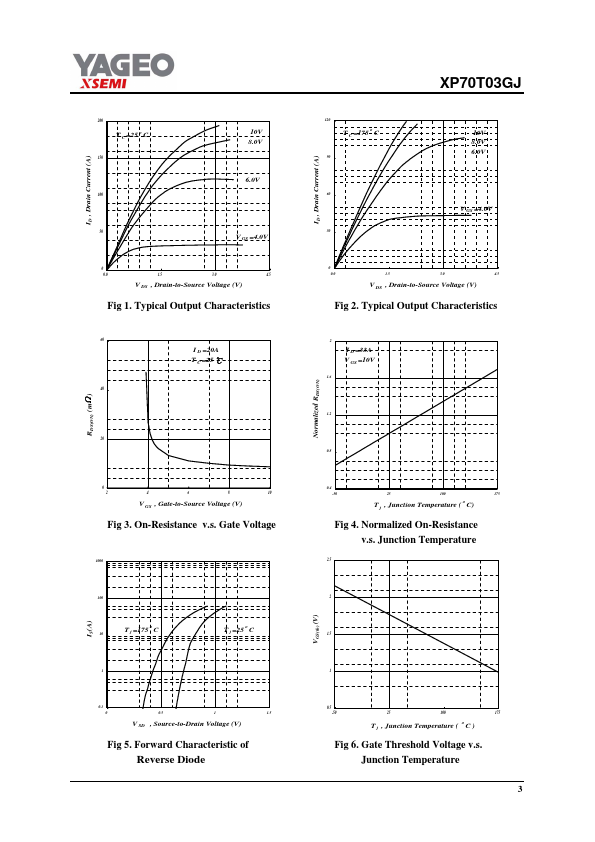

XP70T03GJ Datasheet Preview — Preview of XP70T03GJ PDF

Datasheet Specifications

Part number: XP70T03GJ
Manufacturer: YAGEO
File Size: 173.70 KB
Datasheet: XP70T03GJ-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-251 package is widely preferred for all commercial-industrial through-hole applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID GD S 30V 9mΩ 60A TO-251(J) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating U
