XP70SL1K4AH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP70SL1K4AH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Fast Switching Characteristic ▼ Simple Drive Req.
XP70SL1K4A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

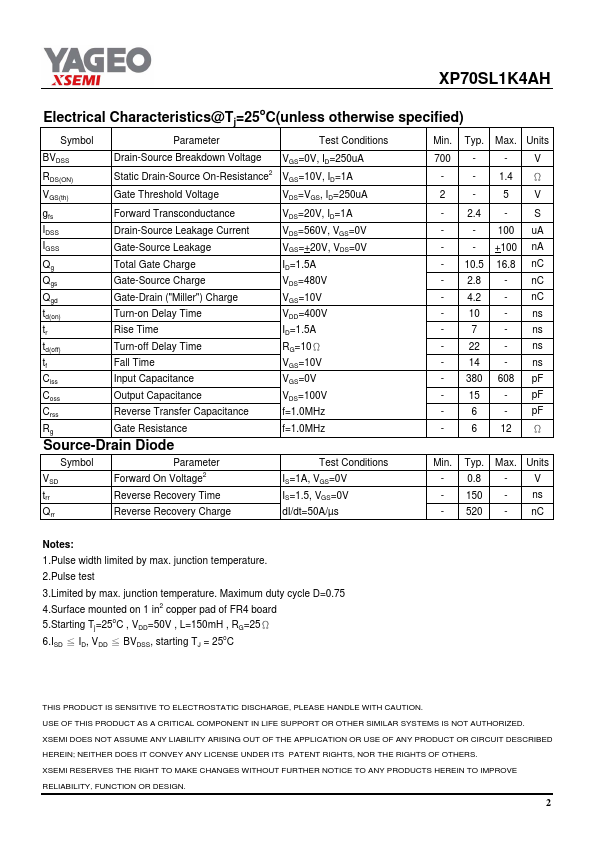

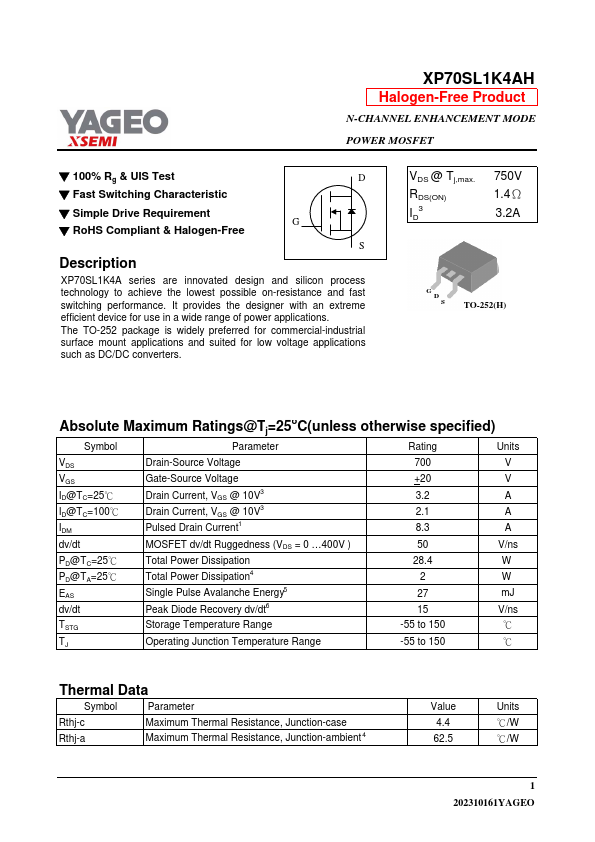

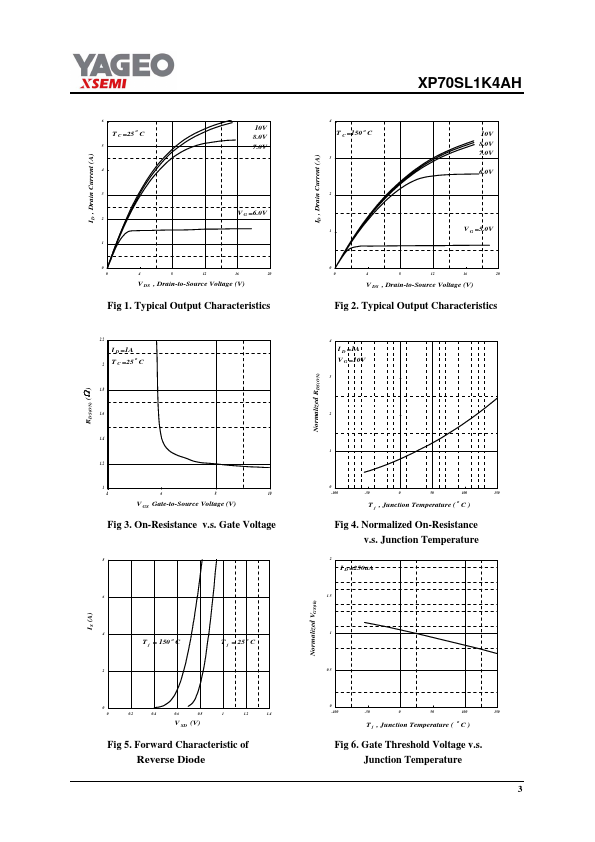

XP70SL1K4AH Datasheet Preview — Preview of XP70SL1K4AH PDF

Datasheet Specifications

Part number: XP70SL1K4AH
Manufacturer: YAGEO
File Size: 178.65 KB
Datasheet: XP70SL1K4AH-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for commercial-industrial surface mount applications and suited for low voltage applications such as DC/DC converters. VDS @ Tj,max. RDS(ON) ID3 750V 1.4Ω 3.2A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
