XP70AN3K3I N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP70AN3K3I Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% UIS Test D ▼ Simple Drive Requirement ▼ Fast Switching Characterist.
XP70AN3K3 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

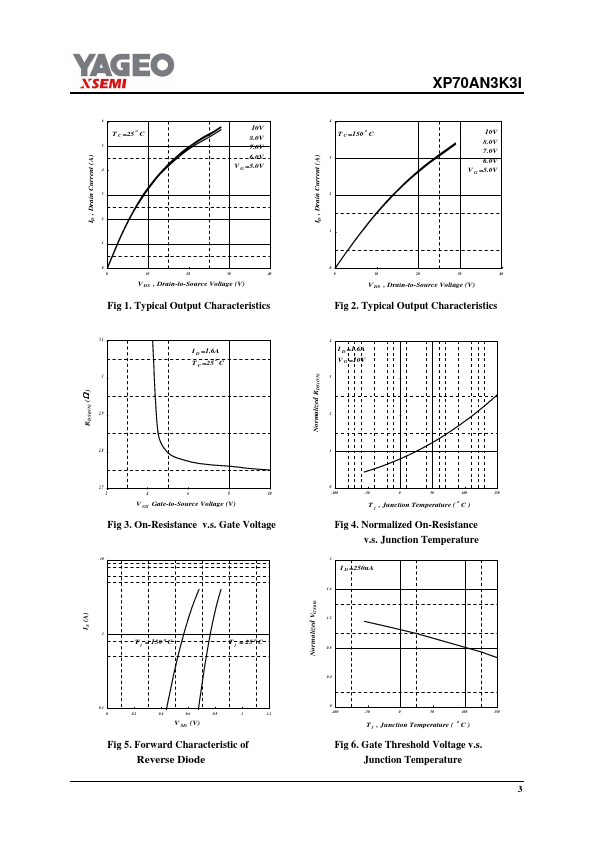

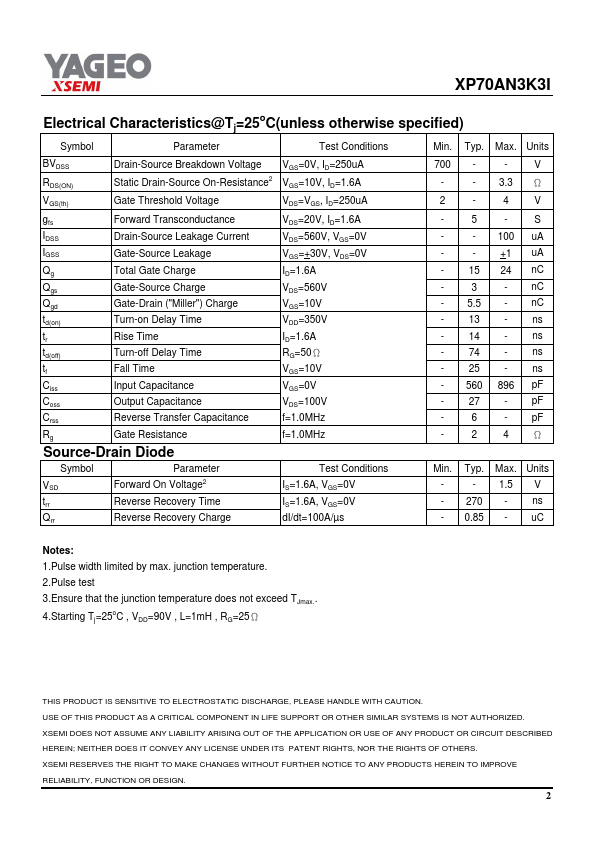

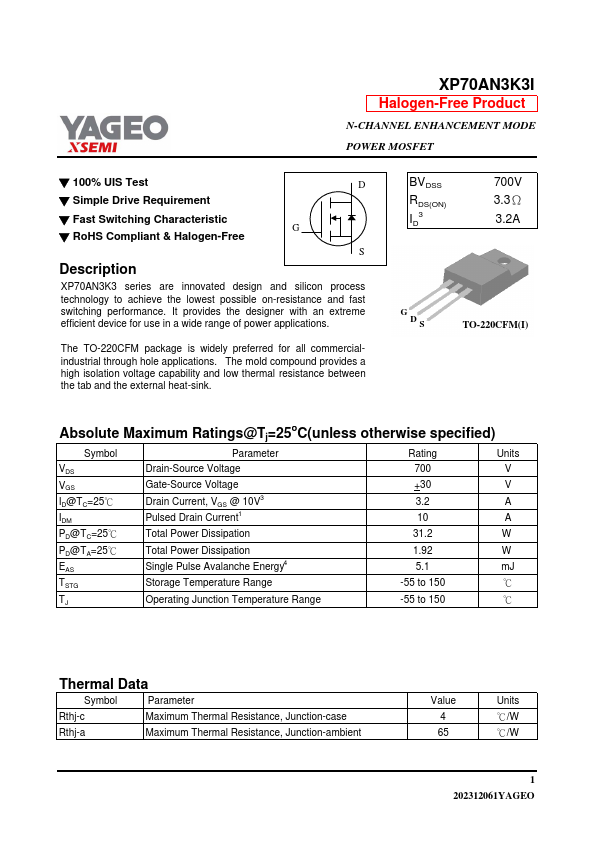

XP70AN3K3I Datasheet Preview — Preview of XP70AN3K3I PDF

Datasheet Specifications

Part number: XP70AN3K3I
Manufacturer: YAGEO
File Size: 212.72 KB
Datasheet: XP70AN3K3I-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3 700V 3.3Ω 3.2A G DS TO-220CFM(I) Absolute M
