XP9434GM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

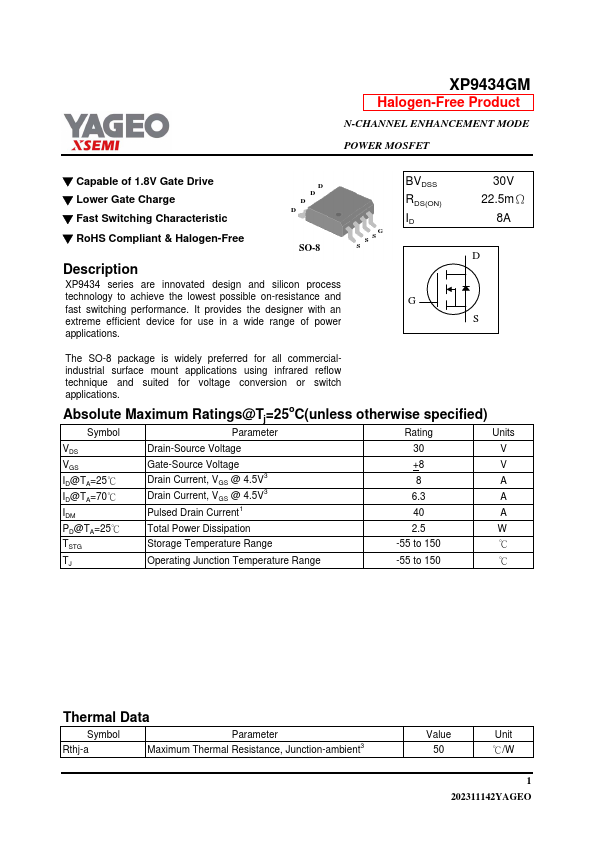

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP9434GM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 1.8V Gate Drive ▼ Lower Gate Charge ▼ Fast Switching Characteristi.
XP9434 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

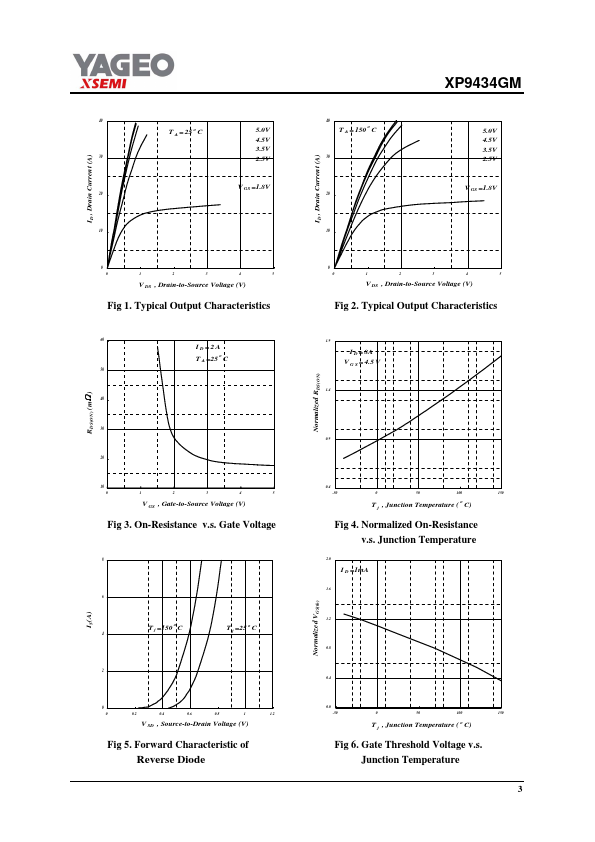

Preview of XP9434GM PDF

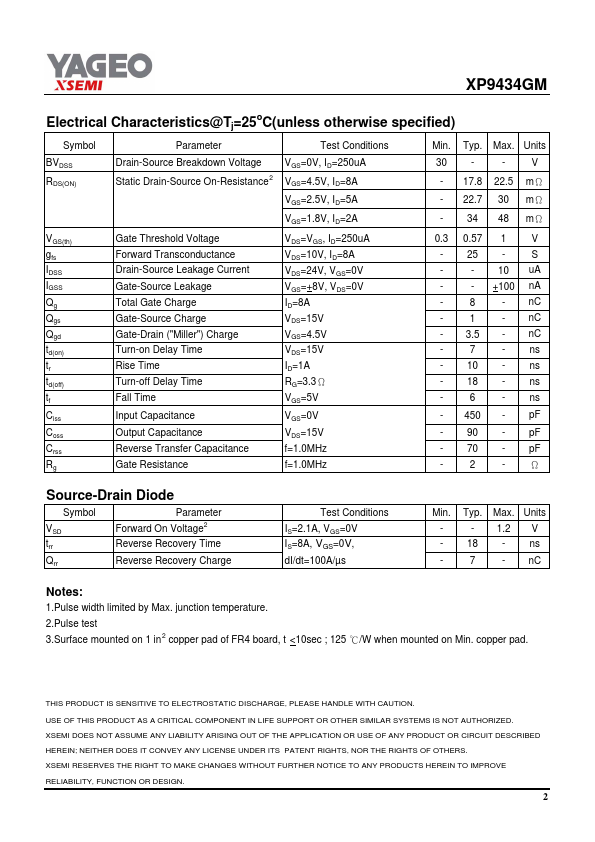

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP9434GM
Manufacturer
YAGEO
File Size
204.99 KB
Datasheet
XP9434GM-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G SS S BVDSS RDS(ON) ID G 30V 22.5mΩ 8A D S The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbo
