XP9446YT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9446YT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive D ▼ Small Size & Lower Profile ▼ RoHS Compliant.
XP9446 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

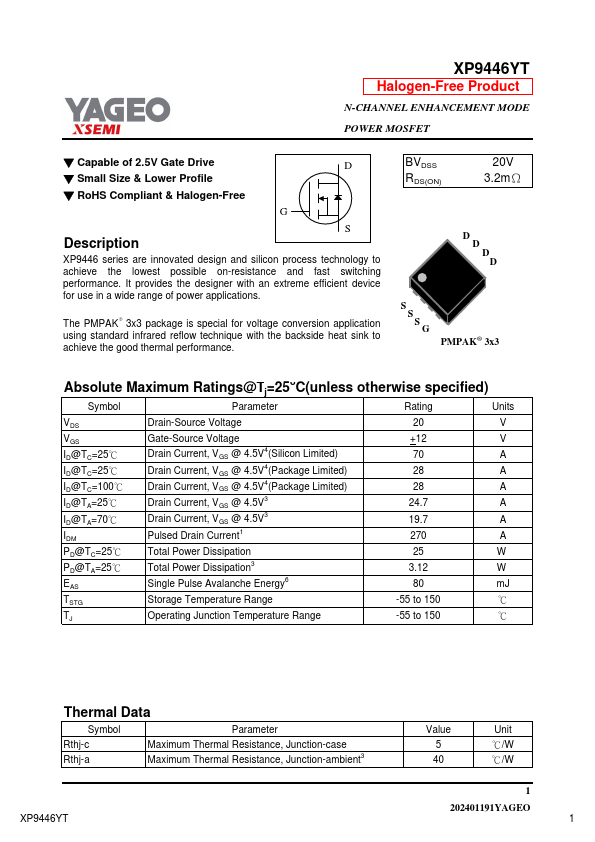

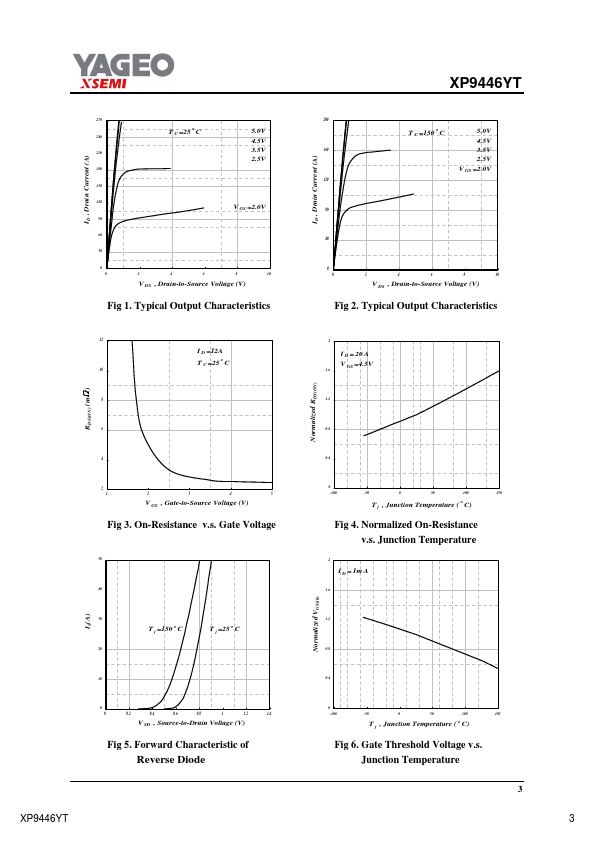

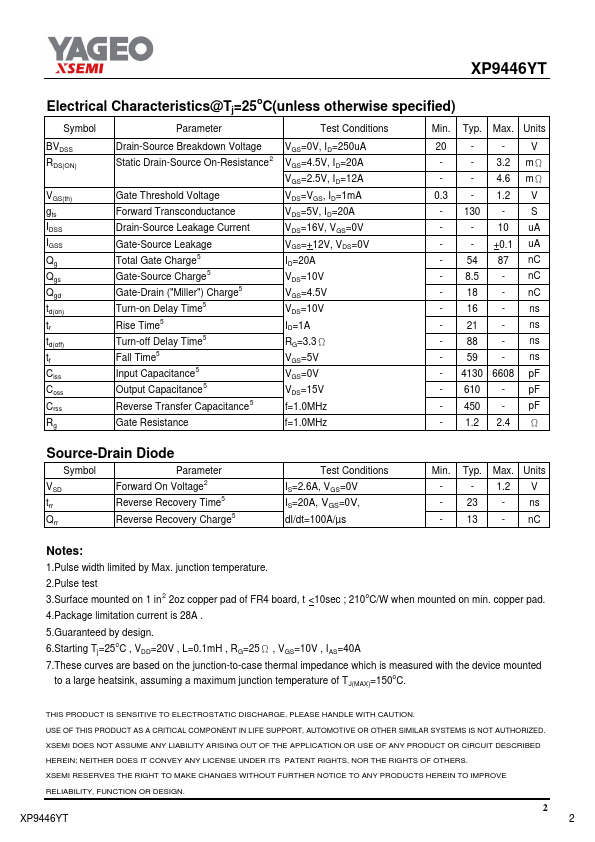

XP9446YT Datasheet Preview — Preview of XP9446YT PDF

Datasheet Specifications

Part number: XP9446YT
Manufacturer: YAGEO
File Size: 252.38 KB
Datasheet: XP9446YT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK® 3x3 package is special for voltage conversion application using standard infrared reflow technique with the backside heat sink to achieve the good thermal performance. BVDSS RDS(ON) 20V 3.2mΩ D D D D S S S G PMPAK® 3x3 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified)
