XP9474GM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9474GM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance ▼ Simple Drive Requirement ▼ Surface Mount Package ▼ RoHS C.
XP9474 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

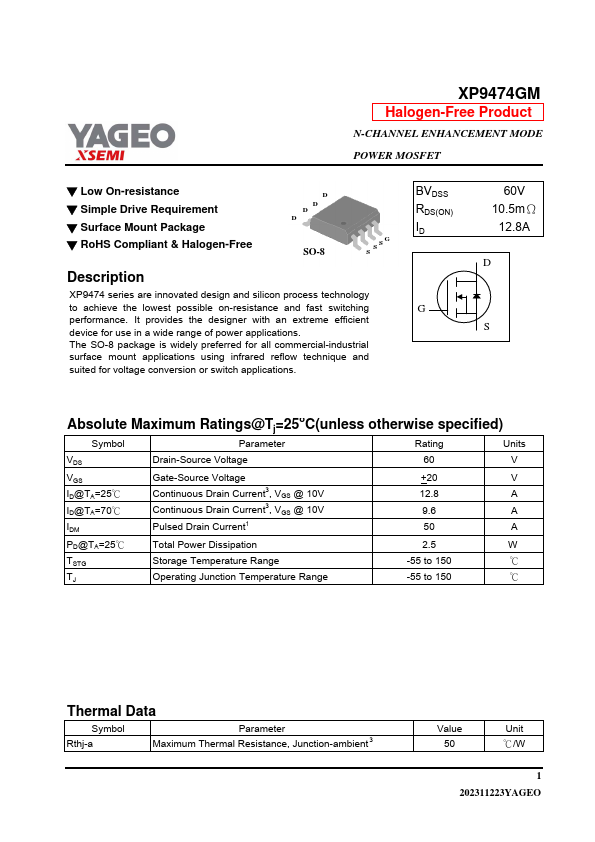

XP9474GM Datasheet Preview — Preview of XP9474GM PDF

Datasheet Specifications

Part number: XP9474GM
Manufacturer: YAGEO
File Size: 239.01 KB
Datasheet: XP9474GM-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID G 60V 10.5mΩ 12.8A D S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Pa
