XP9974AGJ N-CHANNEL ENHANCEMENT MODE POWER MOSFET

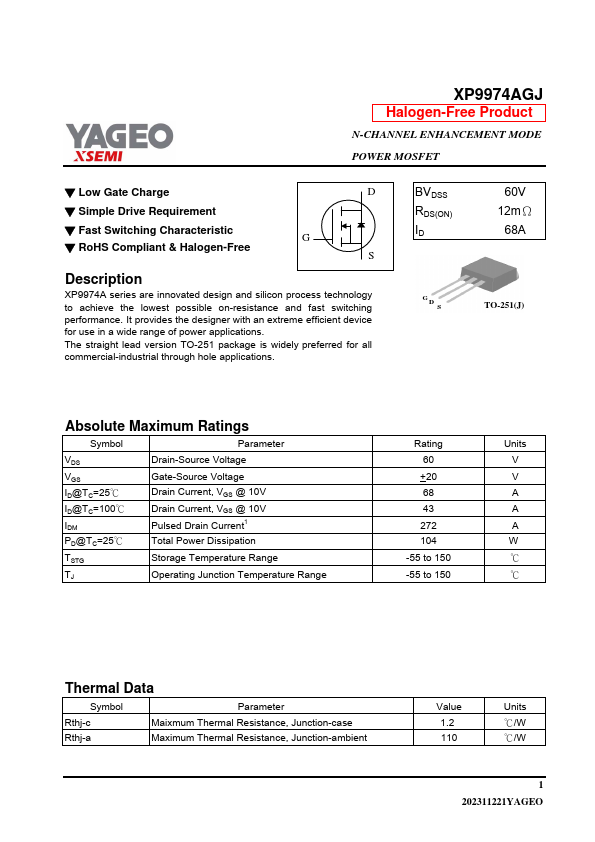

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP9974AGJ Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low Gate Charge D ▼ Simple Drive Requirement ▼ Fast Switching Characteris.
XP9974A series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

Preview of XP9974AGJ PDF

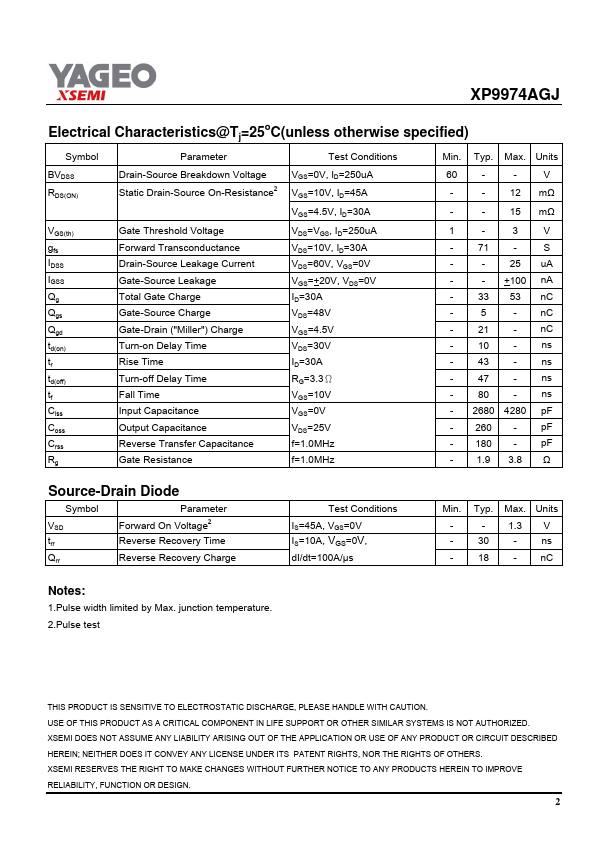

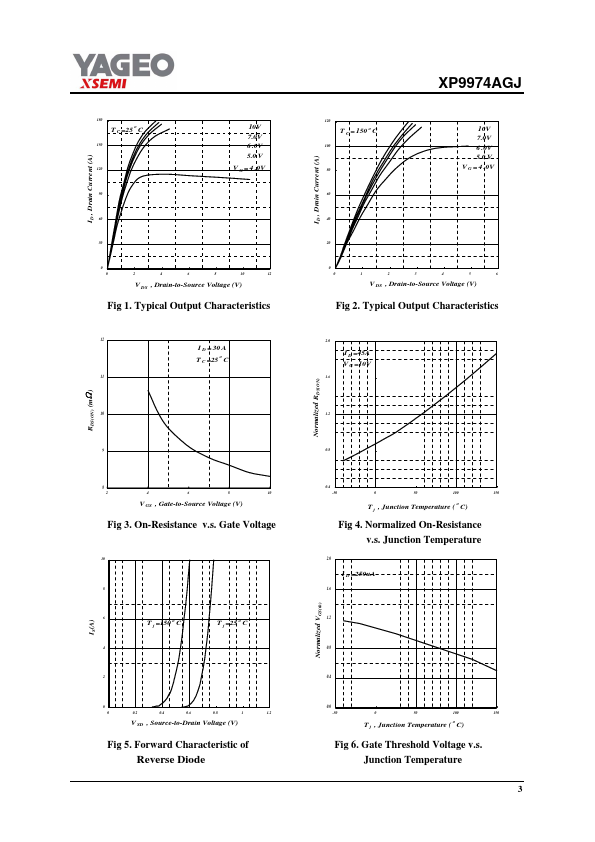

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP9974AGJ
Manufacturer
YAGEO
File Size
174.29 KB
Datasheet
XP9974AGJ-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The straight lead version TO-251 package is widely preferred for all commercial-industrial through hole applications. BVDSS RDS(ON) ID 60V 12mΩ 68A GD S TO-251(J) Absolute Maximum Ratings Symbol Parameter VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃ TSTG TJ Drain-Source Voltage Gate-Source V
