XP9974GH N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP9974GH Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance D ▼ Simple Drive Requirement ▼ Fast Switching Performanc.
XP9974 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

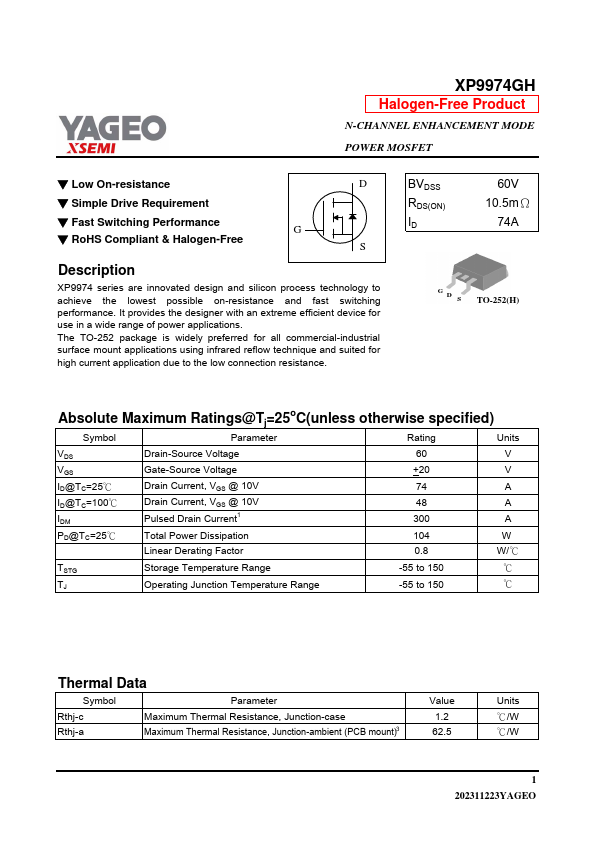

Preview of XP9974GH PDF

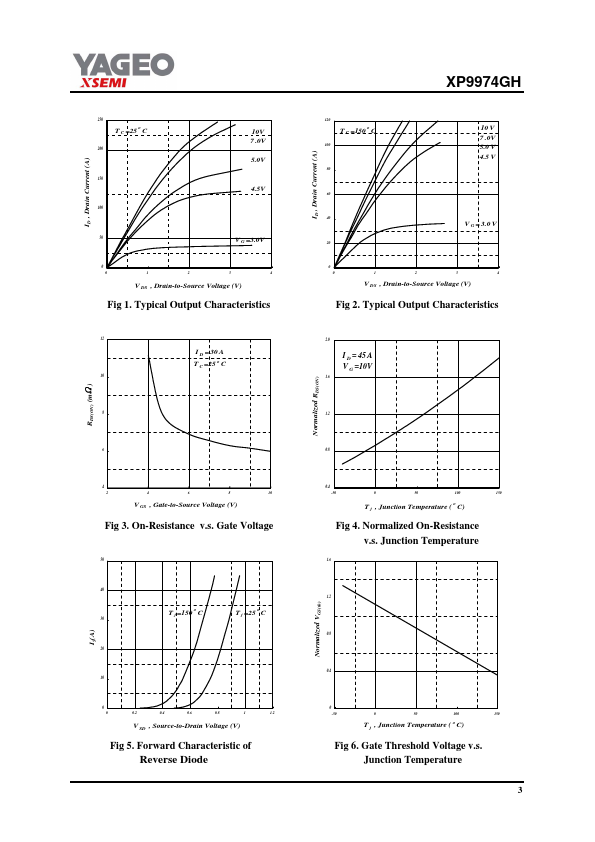

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP9974GH
Manufacturer
YAGEO
File Size
210.02 KB
Datasheet
XP9974GH-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-252 package is widely preferred for all commercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance. BVDSS RDS(ON) ID 60V 10.5mΩ 74A G D S TO-252(H) Absolute Maximum Ratings@Tj=25oC(unless o
