XP9975GM DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP9975GM Halogen-Free Product DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement ▼ Lower On-resistance ▼ Surface Mount Package ▼.
XP9975 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

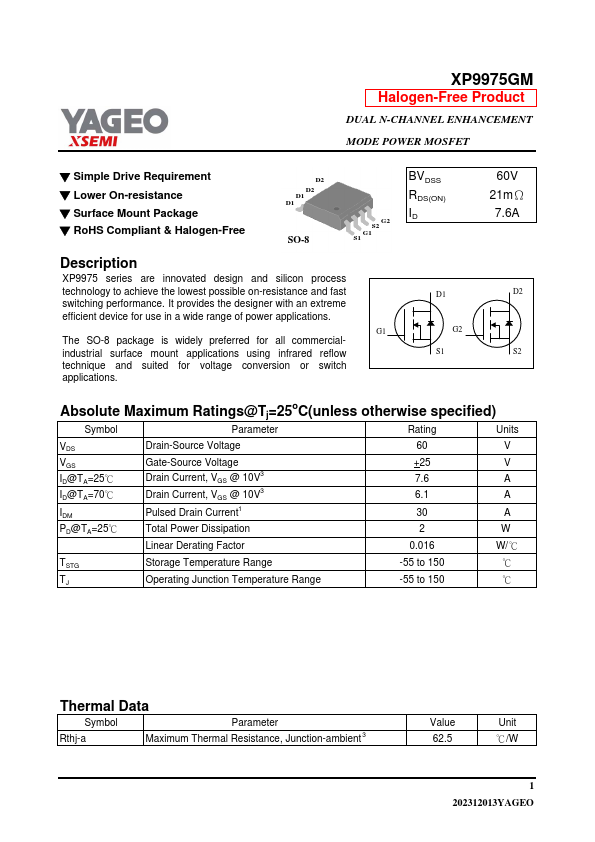

XP9975GM Datasheet Preview — Preview of XP9975GM PDF

Datasheet Specifications

Part number: XP9975GM
Manufacturer: YAGEO
File Size: 208.10 KB
Datasheet: XP9975GM-YAGEO.pdf
Description: DUAL N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* G1 The SO-8 package is widely preferred for all commercialindustrial surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. BVDSS RDS(ON) ID D1 G2 S1 60V 21mΩ 7.6A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Sy
