XP9977GM N-CHANNEL ENHANCEMENT MODE POWER MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

XP9977GM Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Low On-resistance ▼ Simple Drive Requirement ▼ Surface Mount Package ▼ RoHS C.
XP9977 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

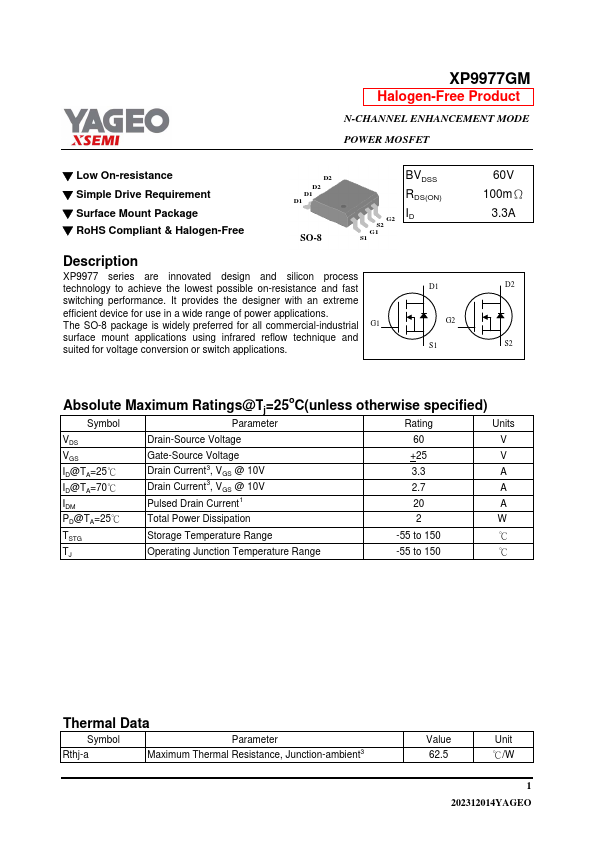

Preview of XP9977GM PDF

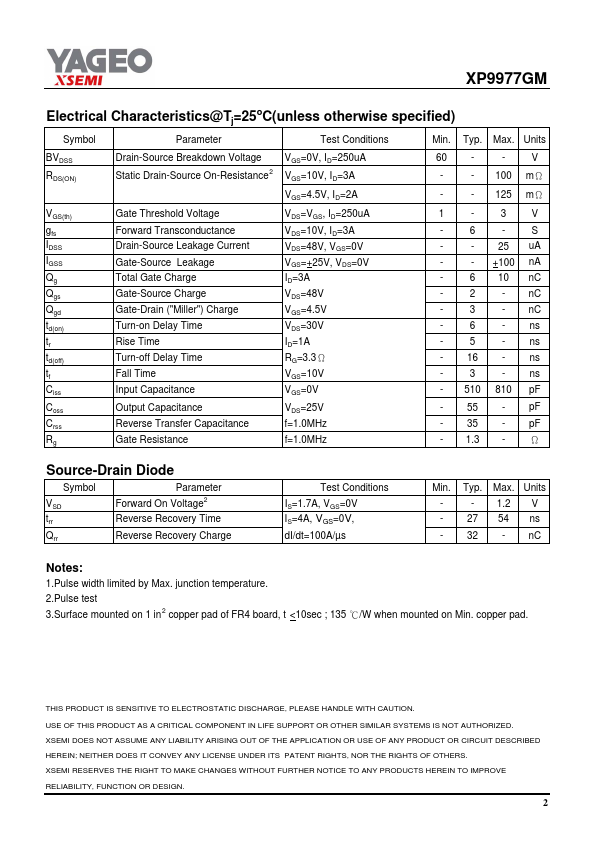

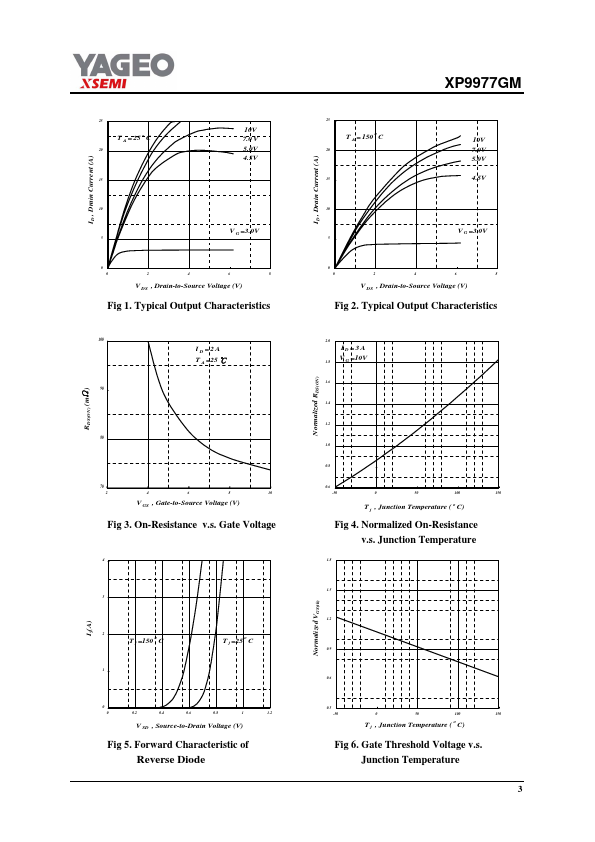

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
XP9977GM
Manufacturer
YAGEO
File Size
204.93 KB
Datasheet
XP9977GM-YAGEO.pdf
Description
N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SO-8 package is widely preferred for all commercial-industrial G1 surface mount applications using infrared reflow technique and suited for voltage conversion or switch applications. D1 G2 S1 60V 100mΩ 3.3A D2 S2 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
