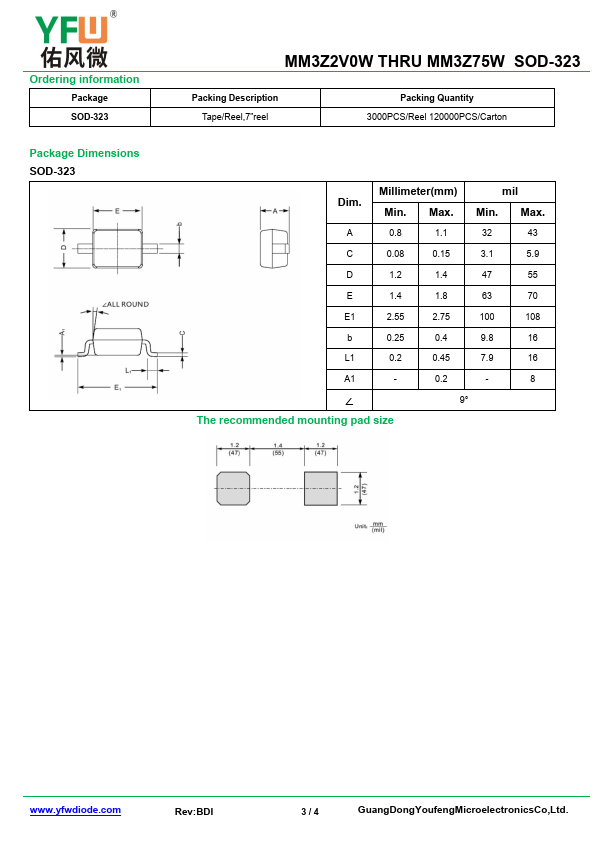

Tape/Reel,7”reel Packing Quantity 3000PCS/Reel 120000PCS/Carton Dim.
Millimeter(mm) Min.
Max.
mil Min.
Max.
A 0.8 1.1 32 43 C 0.08 0.15 3.1 5.9 D 1.2 1.4 47 55 E 1.4 1.8 63 70 E1 2.55 2.75 100 108 b 0.25 0.4 9.8 16 L1 0.2 0.45 7.9 16 A1 - 0.2 - 8 ∠ 9° T

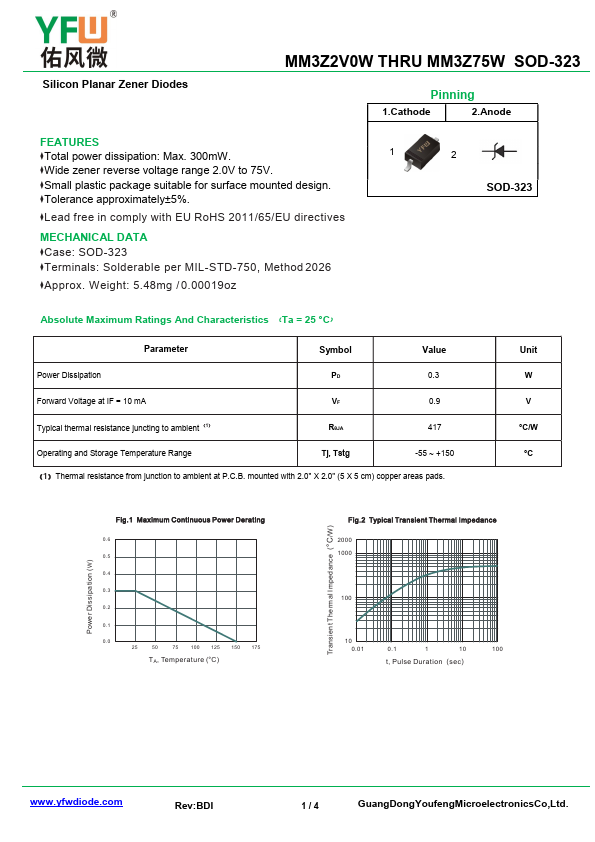

MM3Z27W Features
* Total power dissipation: Max. 300mW. 1
* Wide zener reverse voltage range 2.0V to 75V.
* Small plastic package suitable for surface mounted design.
* Tolerance approximately±5%.
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SOD-323
* T
Datasheet Details
MM3Z27W, MM3Z2V0W
YFW
1.39 MB
Silicon planar zener diodes.
This datasheet PDF includes multiple part numbers: MM3Z27W, MM3Z2V0W.
Please refer to the document for exact specifications by model.
