LR10D-12V Datasheet - YMTech

LR10D-12V MINIATURE POWER LATCH RELAY

LR10S LR10SA MINIATURE POWER LATCH RELAY LR10 Series ▶ LR10S (1 Coil latching) 1 Form a Spec. Nominal voltage VDC Set voltage Reset voltage VDC(Min) VDC(Min) Nominal operating current (㎃) LR10S-3V 3 2.1 2.1 63 LR10S-5V 5 3.5 3.5 37 LR10S-6V 6 4.2 4.2 31 LR10S-9V 9 6.3 6.3 21 LR10S-12V 12 8.4 8.4 15 LR10S-24V 24 16.8 16.8 7.7 Note : 1. Nominal operating current and coil resistance are measured at + 20℃ Coil resistance ±10%Ω 48 135 195 430 780 3,100 Nominal operating powe.

LR10D-12V Datasheet (582.55 KB)

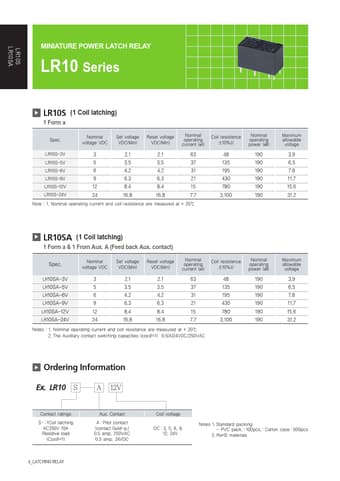

Preview of LR10D-12V PDF

Datasheet Details

Part number:

LR10D-12V

Manufacturer:

YMTech

File Size:

582.55 KB

Description:

Miniature power latch relay.
