VB12xxS-2W DC/DC Converter

SIP 1 2 4 6 Connection +Vin GND 0V +VO Input Input Output Output DIP 14 1 11 9 Note:Pin “7” can’t connect all the others. SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. Email: sales02@szsunyuan.com www.szsunyuan.com Copyright @ Shenzhen Sunyuan Technology Co., Ltd. Edition-SZSY-07-01 Printed in P.R.C .

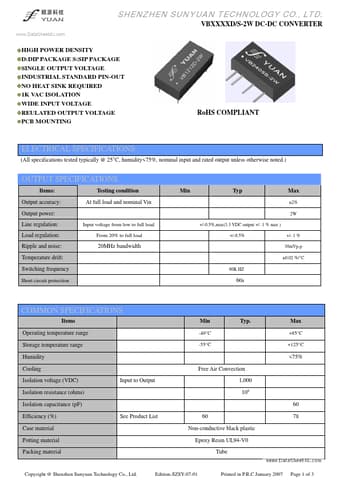

11:06 SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. VBXXXXD/S-2W DC-DC CONVERTER www.DataSheet4U.com HIGH POWER DENSITY D:DIP PACKAGE S:SIP PACKAGE SINGLE OUTPUT VOLTAGE INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1K VAC ISOLATION WIDE INPUT VOLTAGE REULATED OUTPUT VOLTAGE PCB MOUNTING RoHS COMPLIANT ELECTRICAL SPECIFICATIONS: (All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted.) OUTPUT SPECIFICATIONS Items: Output accuracy: Output.
