VB10170C Dual High-Voltage Trench MOS Barrier Schottky Rectifier

www.vishay.com VB10170C Vishay General Semiconductor Dual High-Voltage Trench MOS Barrier Schottky Rectifier Ultra Low VF = 0.57 V at IF = 2.5 A TM.

VB10170C-Vishay.pdf

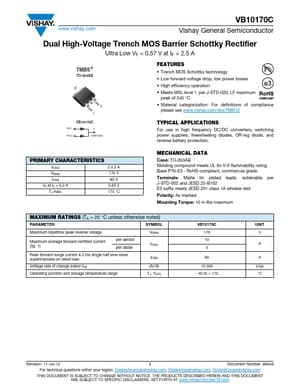

VB10170C Datasheet Preview — Preview of VB10170C PDF

Datasheet Details

Part number:

VB10170C

Manufacturer:

Vishay ↗

File Size:

85.96 KB

Description:

Dual High-Voltage Trench MOS Barrier Schottky Rectifier

Features

* Trench MOS Schottky technology
* Low forward voltage drop, low power losses
* High efficiency operation
* Meets MSL level 1, per J-STD-020, LF maximum peak of 245 °C
* Material categorization: For definitions of compliance please see www. vishay. com/doc?99912

Applications

* For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection. PRIMARY CHARACTERISTICS IF(AV) VRRM IFSM VF at IF = 5.0 A TJ max. 2x5A 170 V 80 A 0.65 V 175 °C MECHANICAL DATA Case: TO-263AB Molding compound meets UL 94 V-0
