APM-B3D1, APM-xxxx - Compact Proximity Sensors

Yamatake

The APM-B3D1 by Yamatake is a Compact Proximity Sensors. Below is the official datasheet preview.

📥 Download Datasheet

APM-B3D1 Compact Proximity Sensors by Yamatake - Datasheet Preview — Official preview page of the APM-B3D1 Compact Proximity Sensors datasheet (Yamatake).

Datasheet Details

Part number	APM-B3D1, APM-xxxx
Manufacturer	Yamatake
File Size	619.71 KB
Description	Compact Proximity Sensors
Datasheet	APM-xxxx_Yamatake.pdf
Note	This datasheet PDF includes multiple part numbers: APM-B3D1, APM-xxxx. Please refer to the document for exact specifications by model.

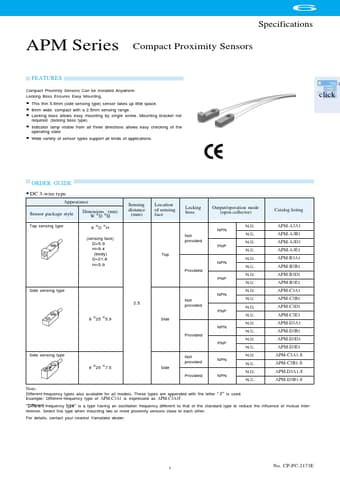

Additional preview pages of the APM-B3D1 datasheet.

APM-B3D1 Product details

Features

Compact Proximity Sensors Can be Installed Anywhere. Locking Boss Ensures Easy Mounting.
This thin 5.9mm (side sensing type) sensor takes up little space.
8mm wide, compact with a 2.5mm sensing range.
Locking boss allows easy mounting by single screw. Mounting bracket not required. (locking boss type).
Indicator lamp visible from all three directions allows easy checking of the operating state.
Wide variety of sensor types support all kinds of app.
