APM-B3E1, APM-xxxx Compact Proximity Sensors

Yamatake

APM-B3E1 Description

APM Series 6 Specifications Compact Proximity Sensors .

APM-B3E1 Features

* Compact Proximity Sensors Can be Installed Anywhere. Locking Boss Ensures Easy Mounting.
* This thin 5.9mm (side sensing type) sensor takes up little space.
* 8mm wide, compact with a 2.5mm sensing range.
* Locking boss allows easy mounting by single screw. Mounting bracket n

APM-B3E1 Applications

* click ORDER GUIDE
* DC 3-wire type Appearance Sensor package style Dimensions (mm) WDH Sensing distance (mm) Location of sensing face Locking boss Output/operation mode (open collector) Catalog listing Top sensing type Side sensing type Side sensing type 8DH (sensing face) D=5.9

📥 Download Datasheet

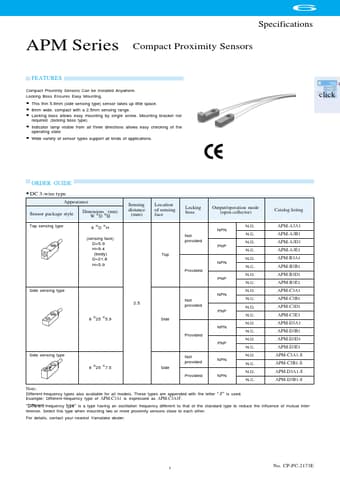

APM-B3E1 Datasheet Preview — This datasheet PDF includes multiple part numbers: APM-B3E1, APM-xxxx. Please refer to the document for exact specifications by model.

Datasheet Details

Part number: APM-B3E1, APM-xxxx
Manufacturer: Yamatake
File Size: 619.71 KB
Datasheet: APM-xxxx_Yamatake.pdf
Description: Compact Proximity Sensors
Note: This datasheet PDF includes multiple part numbers: APM-B3E1, APM-xxxx.
Please refer to the document for exact specifications by model.
