APM1105NFP Datasheet, Mosfet, Sinopower

APM1105NFP Features

• Mosfet
• 100V/16A, RDS(ON)= 80mΩ(typ.) @ VGS= 10V R= DS(ON) 130mΩ(typ.) @ V= GS 4.5V
• ESD Protected
• Reliable and Rugged
• Lead Free and Green Devic

PDF File Details

Part number:

APM1105NFP

Manufacturer:

Sinopower

File Size:

224.44kb

Download:

📄 Datasheet

Description:

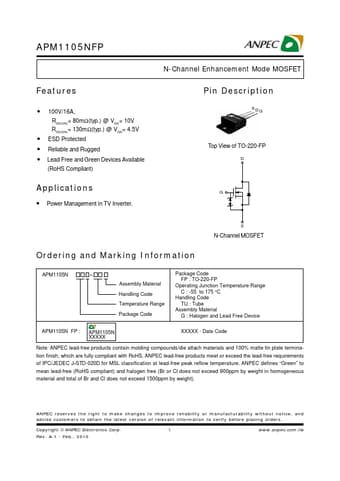

N-channel mosfet. SDG Top View of TO-220-FP D G S N-Channel MOSFET Ordering and Marking Information APM1105N Assembly Material Handling Code Temper

APM1105NFP Application

• Applications
• Power Management in TV Inverter. N-Channel Enhancement Mode MOSFET Pin Description SDG Top View of TO-220-FP D G S N-Channe
