APM1110K

N-Channel MOSFET

APM1110K Features

* 100V/2.7A, RDS(ON)=140mW (typ.) @ VGS=10V RDS(ON)=185mW (typ.) @ VGS=4.5V

* ESD Protected

* Reliable and Rugged

* Lead Free and Green Devices Available (RoHS Compliant) Applications

* Power Management in TV Inverter. ® N-Channel Enhancement Mode MOSFET Pin Configuration DD DD

APM1110K General Description

5 Sec, 245°C 1000 Hrs, 80% of VDS max @ Tjmax 1000 Hrs,.

APM1110K Datasheet (260.00 KB)

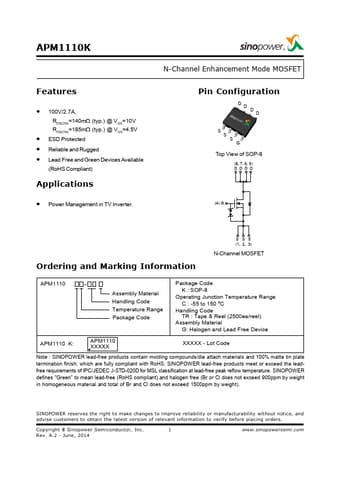

Preview of APM1110K PDF

Datasheet Details

Part number:

APM1110K

Manufacturer:

Sinopower

File Size:

260.00 KB

Description:

N-channel mosfet.
