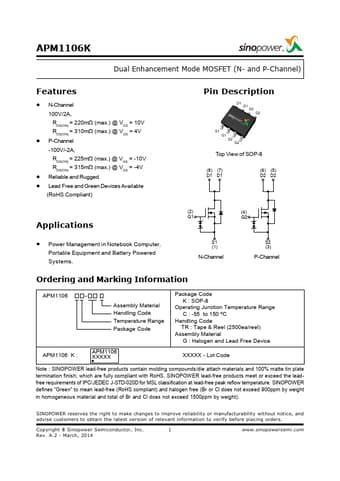

APM1106K Datasheet, Mosfet, Sinopower

APM1106K Features

• Mosfet
• N-Channel 100V/2A, RDS(ON) = 220mW (max.) @ VGS = 10V RDS(ON) = 310mW (max.) @ VGS = 4V
• P-Channel -100V/-2A, RDS(ON) = 225mW (max.) @ VGS = -10V RDS(ON) = 315mW (max

PDF File Details

Part number:

APM1106K

Manufacturer:

Sinopower

File Size:

297.64kb

Download:

📄 Datasheet

Description:

Dual mosfet. D1 D1 D2 D2 S1 G1 S2 G2 Top View of SOP-8 (8) (7) D1 D1 (6) (5) D2 D2 Applications

Power Management in Notebook Compute

APM1106K Application

• Applications
• Power Management in Notebook Computer, Portable Equipment and Battery Powered Systems. (2) (4) G1 G2 S1 (1) N-Channel S2 (
