GBP3005 Bridge Rectifiers

Yangzhou Yangjie

Description

GBP3005 THRU GBP310 RoHS COMPLIANT Bridge Rectifiers .

📥 Download Datasheet

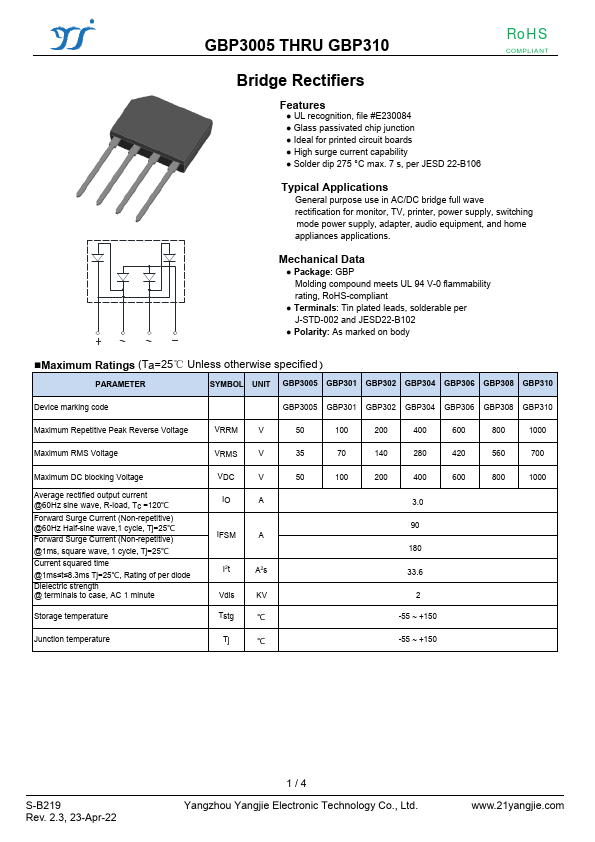

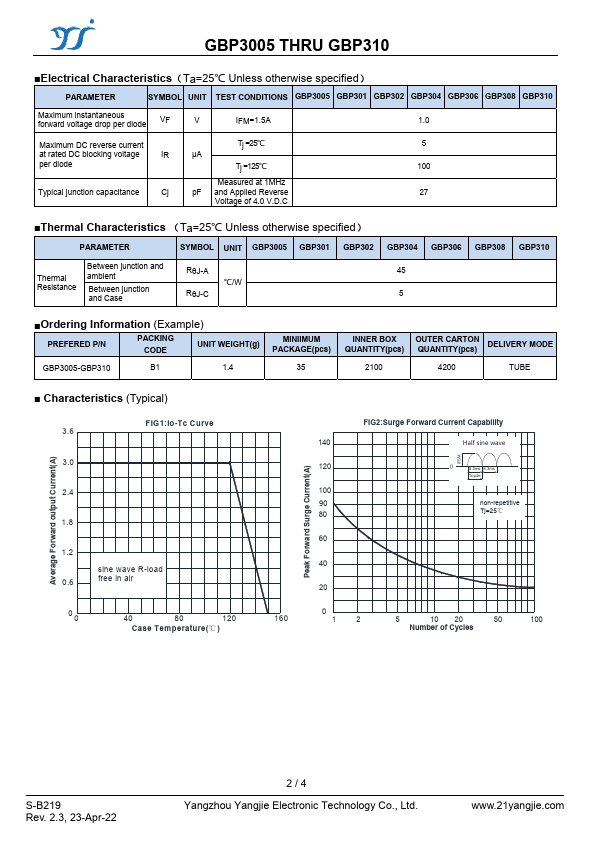

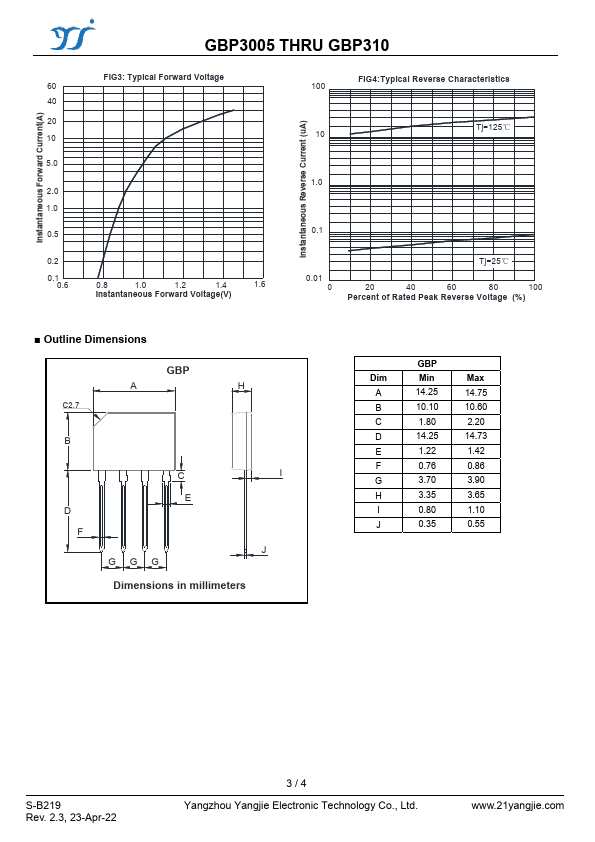

GBP3005 Datasheet Preview — Preview of GBP3005 PDF

Datasheet Specifications

Part number: GBP3005
Manufacturer: Yangzhou Yangjie
File Size: 205.00 KB
Datasheet: GBP3005-YangzhouYangjie.pdf
Description: Bridge Rectifiers

Features

* UL recognition, file #E230084
* Glass passivated chip junction
* Ideal for printed circuit boards
* High surge current capability

Applications

* General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications. +~ ~ - Mechanical Data
* Package: GBP Molding compound meets UL 94 V-0 flammability rating, RoHS-complian
