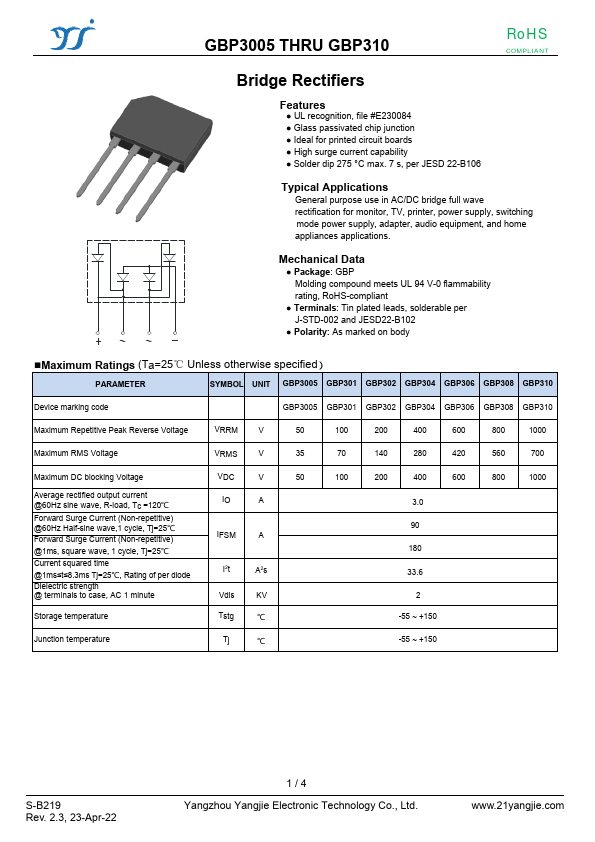

GBP310 Features
* UL recognition, file #E230084
* Glass passivated chip junction
* Ideal for printed circuit boards
* High surge current capability
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for monitor, TV, pr
Datasheet Details
GBP310, GBP3005
Yangzhou Yangjie
205.00 KB
Bridge rectifiers.
This datasheet PDF includes multiple part numbers: GBP310, GBP3005.
Please refer to the document for exact specifications by model.
