GBP308, GBP3005 Bridge Rectifiers

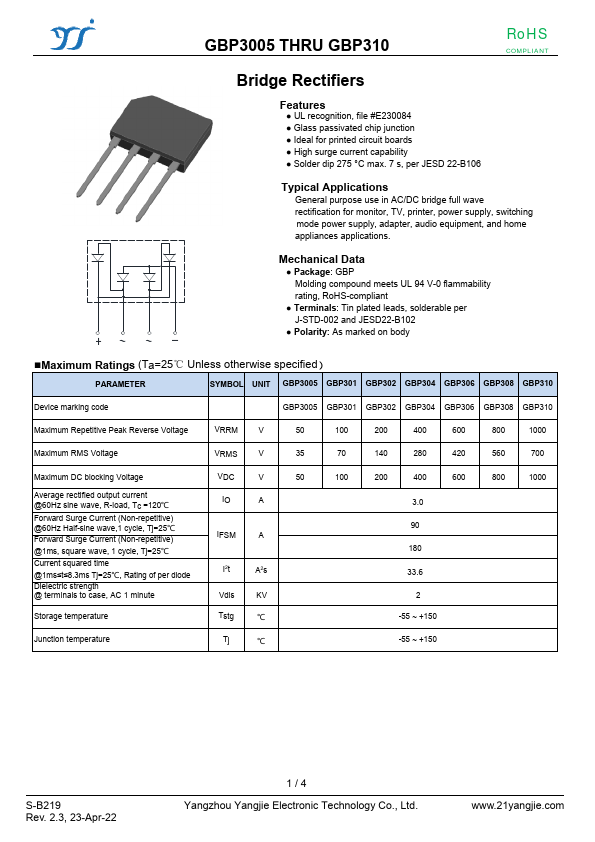

📥 Download Datasheet Datasheet Preview Page 1

Description

GBP3005 THRU GBP310 RoHS COMPLIANT Bridge Rectifiers .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: GBP308, GBP3005. Please refer to the document for exact specifications by model.

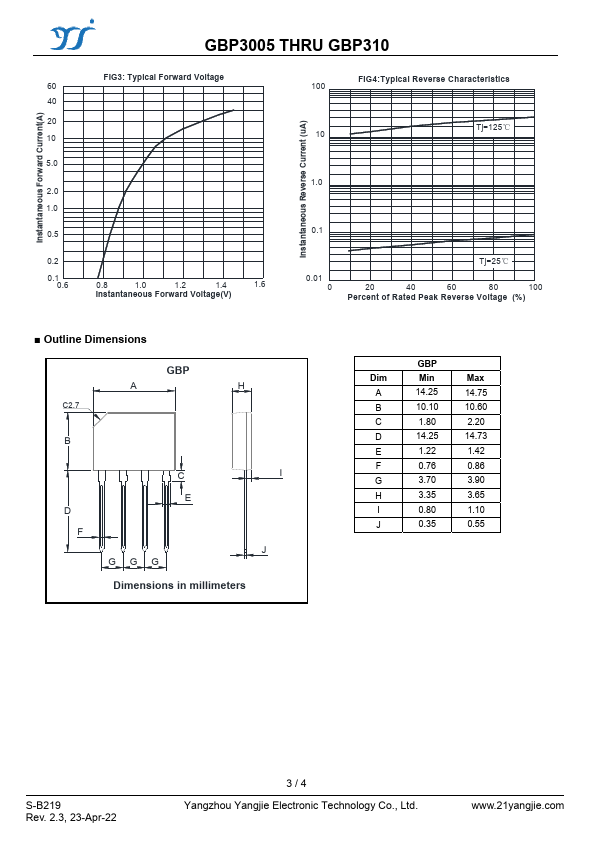

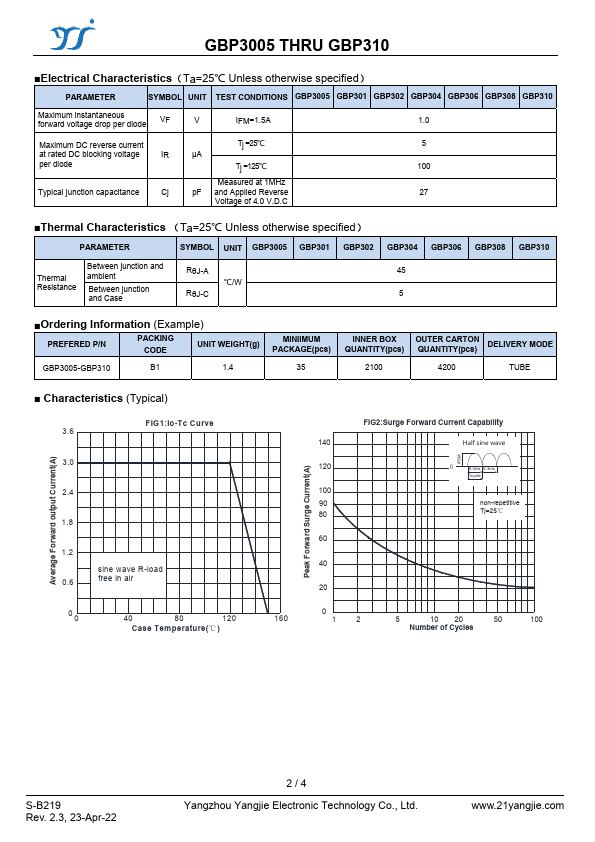

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
GBP308, GBP3005
Manufacturer
Yangzhou Yangjie
File Size
205.00 KB
Datasheet
GBP3005-YangzhouYangjie.pdf
Description
Bridge Rectifiers
Note
This datasheet PDF includes multiple part numbers: GBP308, GBP3005.
Please refer to the document for exact specifications by model.

Features

* UL recognition, file #E230084
* Glass passivated chip junction
* Ideal for printed circuit boards
* High surge current capability

Applications

* General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications. +~ ~ - Mechanical Data
* Package: GBP Molding compound meets UL 94 V-0 flammability rating, RoHS-complian
