GS2AA Surface Mount General Purpose Rectifier

Yangzhou Yangjie

Description

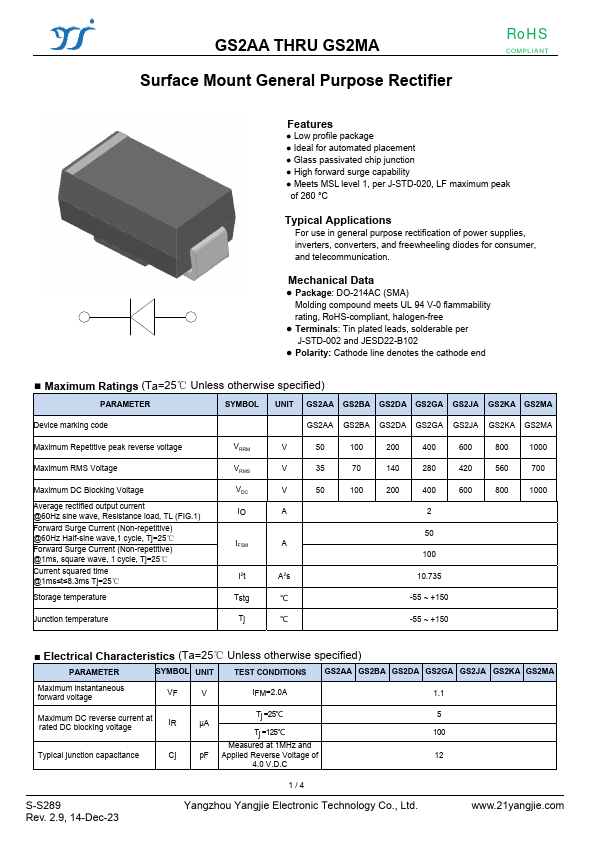

GS2AA THRU GS2MA Surface Mount General Purpose Rectifier RoHS COMPLIANT .

📥 Download Datasheet

GS2AA Datasheet Preview — Preview of GS2AA PDF

Datasheet Specifications

Part number: GS2AA
Manufacturer: Yangzhou Yangjie
File Size: 214.84 KB
Datasheet: GS2AA-YangzhouYangjie.pdf
Description: Surface Mount General Purpose Rectifier

Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability

Applications

* For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data

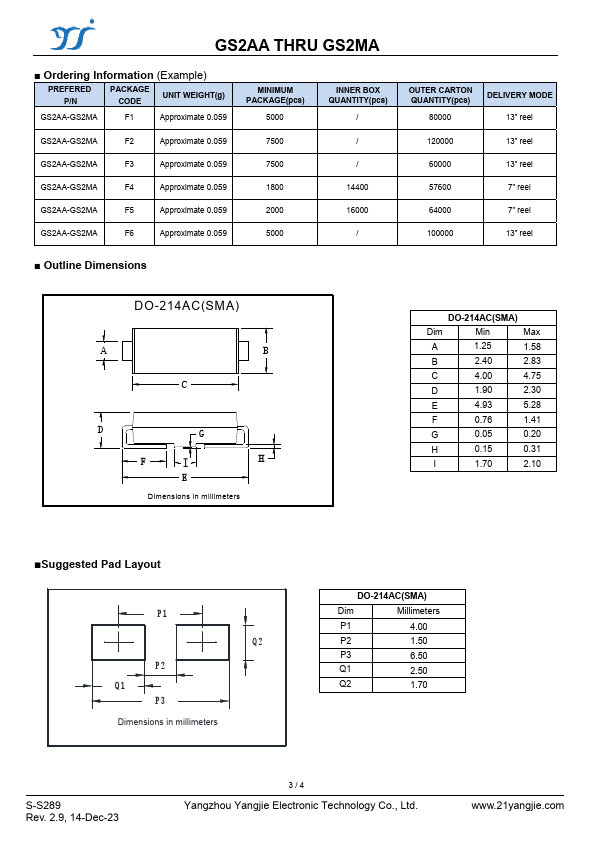

* Package: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated
