MBRB40100CT Schottky Diodes

MBRB40100CT Description

MBRB40100CT RoHS COMPLIANT Schottky Diodes .

MBRB40100CT Features

* High frequency operation
* Low forward voltage drop
* High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
* Guard ring for enhanced ruggedness and long term reliability
* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typica

MBRB40100CT Applications

* Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data
* Package: TO-263 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant
* Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B1

📥 Download Datasheet

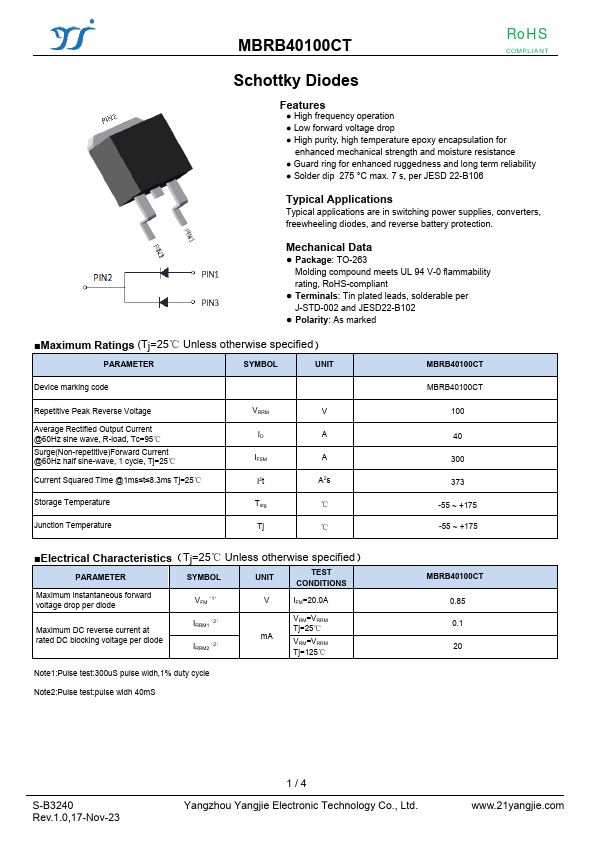

Preview of MBRB40100CT PDF

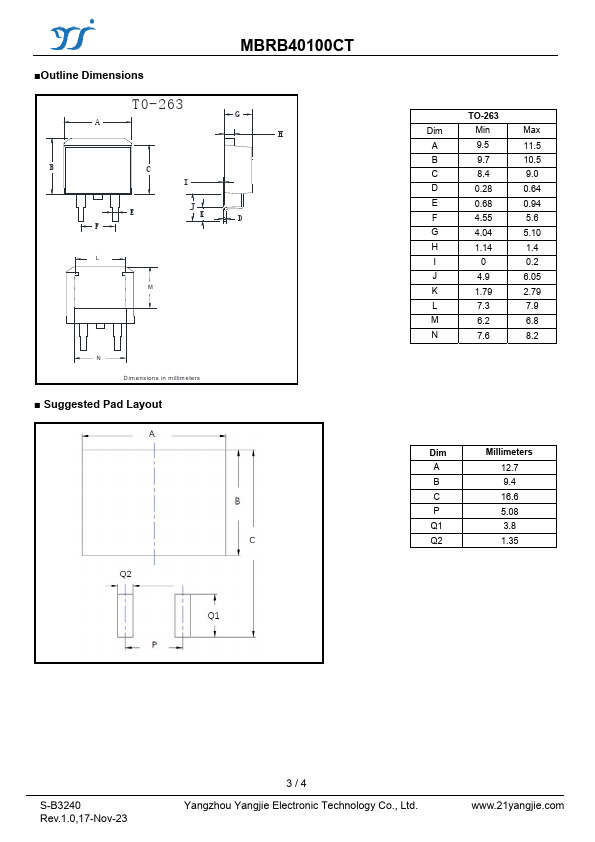

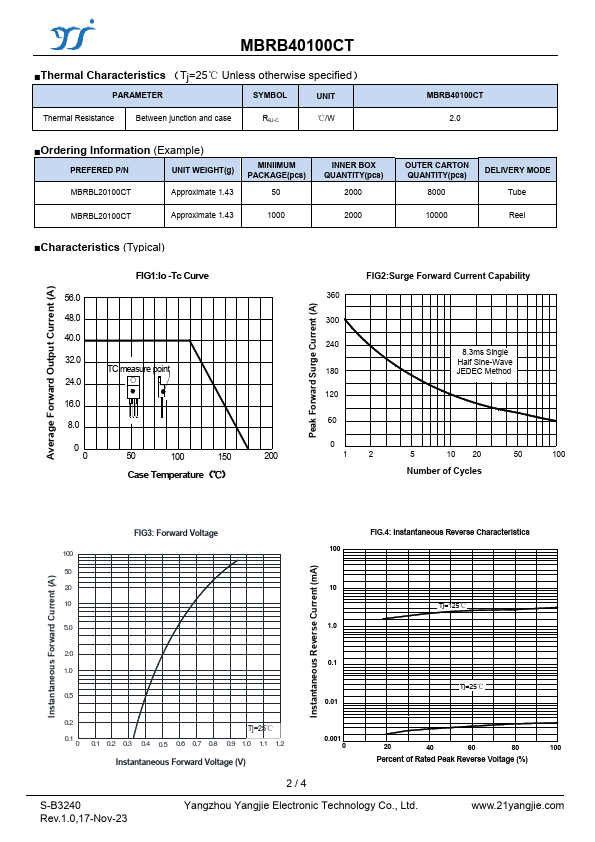

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBRB40100CT
Manufacturer
Yangzhou Yangjie
File Size
207.40 KB
Datasheet
MBRB40100CT-YangzhouYangjie.pdf
Description
Schottky Diodes
