V940ME05

OSCILLATOR

V940ME05 Datasheet (93.90 KB)

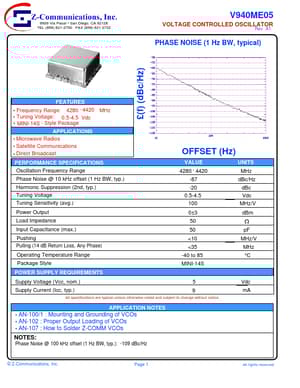

Preview of V940ME05 PDF

Datasheet Details

Part number:

V940ME05

Manufacturer:

Z-Communications

File Size:

93.90 KB

Description:

Oscillator.
www.DataSheet4U.com 9939 Via Pasar

* San Diego, CA 92126 TEL (858) 621-2700 FAX (858) 621-2722 V940ME05 VOLTAGE CONTROLLED OSCILLATOR Rev A1 .

V940ME05 Features

* Frequency Range: 4280 - 4420 MHz

* Tuning Voltage: 0.5-4.5 Vdc

* MINI-14S - Style Package APPLICATIONS

* Microwave Radios

* Satellite Communications

* Direct Broadcast PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset
