DF10

GLASS PASSIVATED BRIDGE RECTIFIER

DF10 Features

* Glass passivated chip junctions

* Low Forward Voltage Drop, High Current Capability

* High Surge Current Capability

* Designed for Surface Mount Application

* Plastic Material-UL Recognition Flammability Classification 94V-0 MECHANICAL DATA Case : Molded Plastic Terminals : Tin

DF10 Datasheet (56.01 KB)

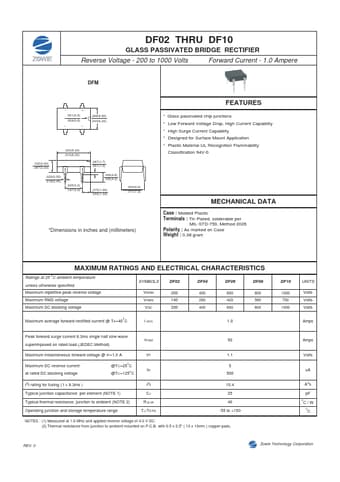

Preview of DF10 PDF

Datasheet Details

Part number:

DF10

Manufacturer:

ZOWIE

File Size:

56.01 KB

Description:

Glass passivated bridge rectifier.
DF02 THRU DF10 GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 200 to 1000 Volts Forward Current - 1.0 Ampere DFM -+ .031(0.8) .024(0.6) ~~ .
