DF1502S

SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

DF1502S Features

* Glass passivated chip junctions

* Low Forward Voltage Drop, High Current Capability

* High Surge Current Capability

* Designed for Surface Mount Application

* Plastic Material-UL Recognition Flammability Classification 94V-0 MECHANICAL DATA Case : Molded Plastic Terminals : Tin

DF1502S Datasheet (46.81 KB)

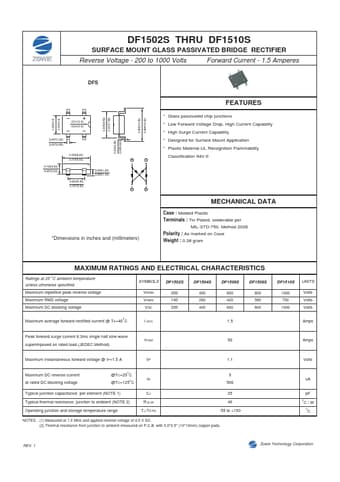

Preview of DF1502S PDF

Datasheet Details

Part number:

DF1502S

Manufacturer:

ZOWIE

File Size:

46.81 KB

Description:

Surface mount glass passivated bridge rectifier.
DF1502S THRU DF1510S SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER Reverse Voltage - 200 to 1000 Volts Forward Current - 1.5 Amperes DFS 0.268(.
