* Glass passivated chip junctions
* Low Forward Voltage Drop, High Current Capability
* High Surge Current Capability
* Designed for Surface Mount Application
* Plastic Material-UL Recognition Flammability Classification 94V-0 MECHANICAL DATA Case : Molded Plastic Terminals : Tin
DF1508S
ZOWIE
46.81 KB
Surface mount glass passivated bridge rectifier.

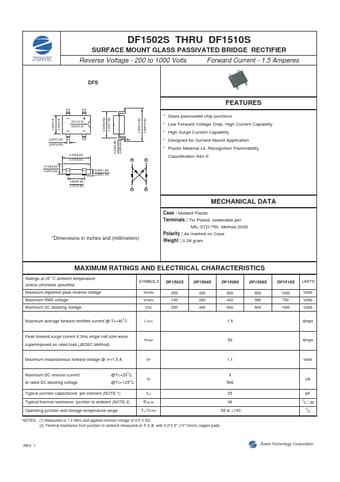

DF1502S THRU DF1510S
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
Reverse Voltage - 200 to 1000 Volts
Forward Current - 1.5 Amperes
DFS
0.268(.
