* Glass passivated chip junctions
* Low Forward Voltage Drop, High Current Capability
* High Surge Current Capability
* Designed for Surface Mount Application
* Plastic Material-UL Recognition Flammability Classification 94V-0 MECHANICAL DATA Case : Molded Plastic Terminals : Tin
DF1504
ZOWIE
49.22 KB
Glass passivated bridge rectifier.

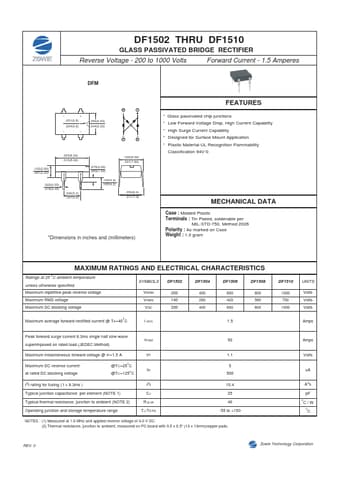

DF1502 THRU DF1510
GLASS PASSIVATED BRIDGE RECTIFIER
Reverse Voltage - 200 to 1000 Volts
Forward Current - 1.5 Amperes
DFM
-+ .031(0.8) .024(0.6).
