ZMCT103C Datasheet - ZeMing

ZMCT103C Current Transformer

Qingxian Zeming Langxi Electronic www.micro-transformer.com ZMCT103C Current Transformer Small size，high accuracy，good consistency，for current and power measurement Structural parameters： Remarks: primary input: straight- through type( make the measured circuit be through the hole) 1、2pin :secondary output Front view Bottom view The main technical parameters： model input current ZMCT103C 0-10A（50Ω） Rated output current turns ratio phase angle error Accuracy class linearity Permissible e.

ZMCT103C Datasheet (135.11 KB)

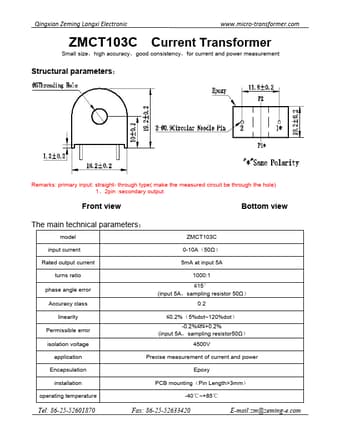

Preview of ZMCT103C PDF
ZMCT103C Datasheet Preview Page 2

Datasheet Details

Part number:

ZMCT103C

Manufacturer:

ZeMing

File Size:

135.11 KB

Description:

Current transformer.
